Engine Accessory Bracket: Service and Repair

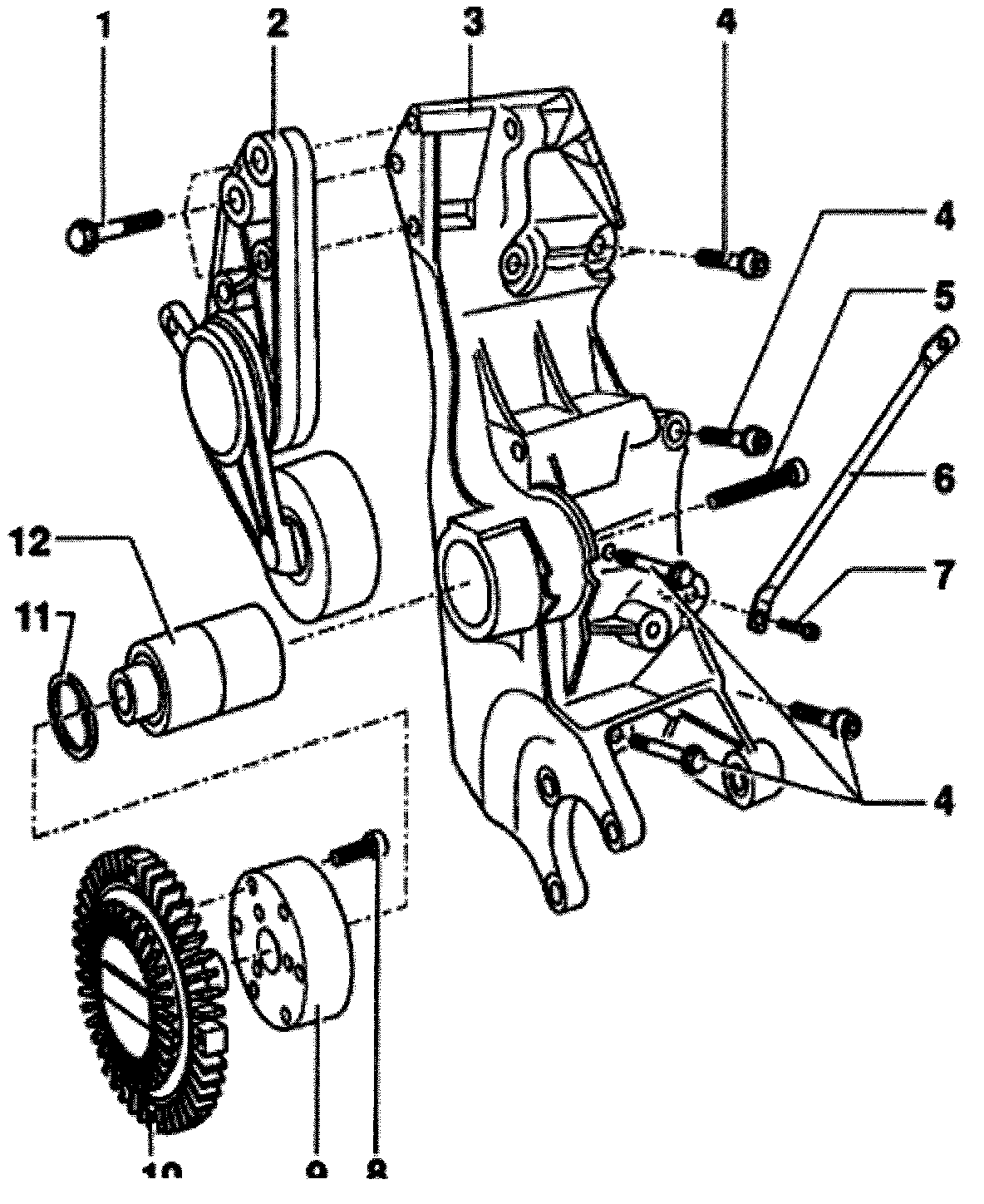

Bracket, removing and installing





1- 25 Nm
2- Ribbed belt tensioner
^ Ribbed belt, removing and installing, refer to Drive Belt.
3- Bracket
^ for tensioner, viscous fan clutch, generator and power steering vane pump
4- 50 Nm
^ Observe tightening sequence see Fig. 1
5- 45 Nm
^ for viscous fan clutch
6- Brace
^ Between bracket and intake manifold
7- 20 Nm
8- 30 Nm
9- Belt pulley
^ for viscous fan clutch
^ Removing and installing, Refer to Cooling System.
10- Viscous fan clutch
^ Removing and installing, Refer to Cooling System.
11- Snap ring
12- Bearing bushing
^ for viscous fan clutch
^ Removing and installing, Refer to Cooling System.

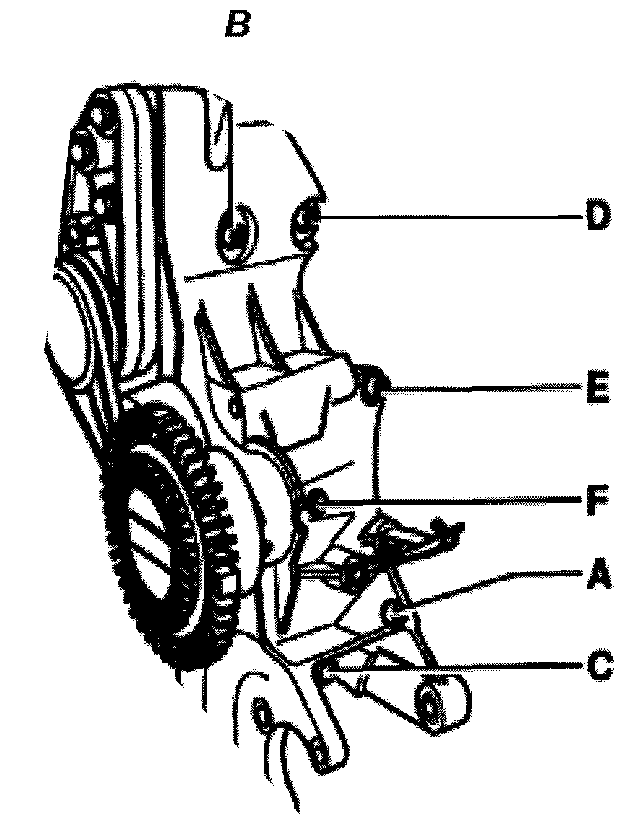

Fig. 1 Tightening sequence, bracket to cylinder block

Special tools and equipment
^ VAG1331 torque wrench (5 to 50 Nm)

Procedure
- Place bracket on cylinder block.
- Tighten bracket in shown tightening sequence to 50 Nm as follows:
1 Tighten bolt -A
2 Tighten bolt -B
3 Tighten bolt -C
4 Tighten bolt -D
5 Tighten bolt -E
6 Tighten bolt -F
