Front Engine Plate: Service and Repair

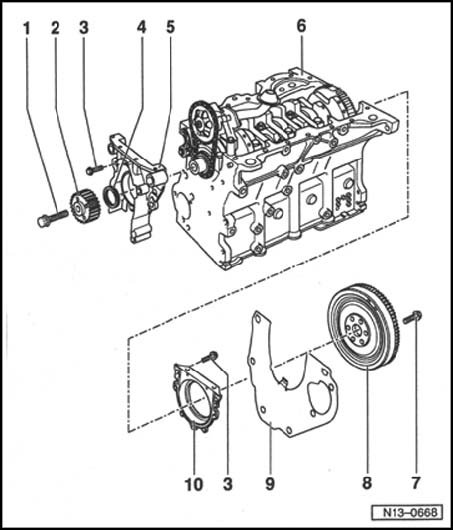

Assembly overview





1 - 90 Nm plus 1/4 turn (90°)
^ Replace
^ Use counter-holder 3415 to loosen and tighten
^ The threads and shoulder must be free of oil and grease

2 - Crankshaft toothed belt sprocket

3 - 15 Nm

4 - Oil seal
^ PTFE seal: Do not additionally oil or grease sealing lip of sealing ring

5 - Sealing flange, front
^ Must be located on dowel sleeves
^ To remove and install, remove oil pan

6 - Cylinder block

7 - 60 Nm plus 1/4 turn (90°)
^ Replace

8 - Flywheel/drive plate
^ To remove and install flywheel, secure using flywheel retainer 3067

9 - Intermediate plate
^ Must be located on dowel sleeves
^ Do not damage or bend when doing assembly work

10 - Sealing flange with sealing ring
^ Replace only as complete unit
^ To install, use provided support sleeve
^ To remove and install, remove oil pan
^ Do not additionally oil or grease sealing lip of sealing ring
^ Before installing, remove oil remains from crankshaft journal with a clean cloth
^ Support sleeve may only be removed after the sealing flange has been slid onto the crankshaft pin.
