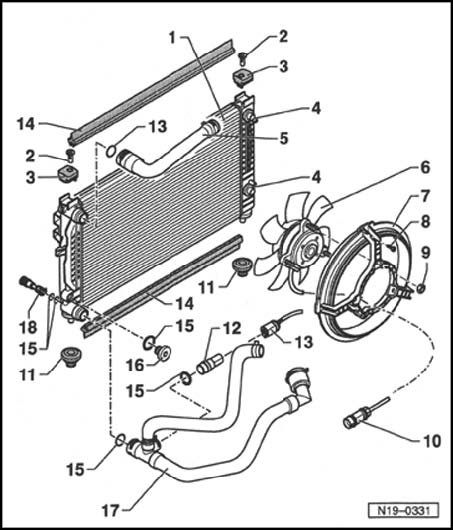

Cooling System Components (on Body), Assembly Overview

Cooling system components (on body), assembly overview





1 - Radiator
^ After replacing replace entire amount of coolant

2 - Securing pin

3 - Securing rubber

4 - Connection piece for ATF line
^ Only for vehicles with automatic transmission

5 - Upper coolant hose
^ Secured to radiator with a retaining clip
^ Ensure hose is seated tightly

6 - Coolant fan V7

7 - Fan ring

8 - Bolt

9 - 10 Nm

10 - 2-pin connector

11 - Rubber bushing

12 - Coolant fan control (FC) thermal switch F18
^ For electric fan
^ Switch temperatures:
- Low speed on: 92 to 97° C Low speed off: 84 to 91° C High speed on: 99 to 105° C High speed off: 91 to 98° C
^ Secured with retaining clip

13 - Connector
^ Black, 4-pin
^ For Coolant Fan Control (FC) thermal switch

14 - Sealing strip
^ On top and bottom of radiator

15 - O-ring
^ Replace if damaged

16 - Locking bolt, 10 Nm

17 - Lower coolant hose
^ Secured to radiator and connection piece with a retaining clip
^ Ensure seated tightly

18 - Drain plug, 10 Nm
