Vacuum Vent Valve: Service and Repair

Vent Valves, Removing And Installing

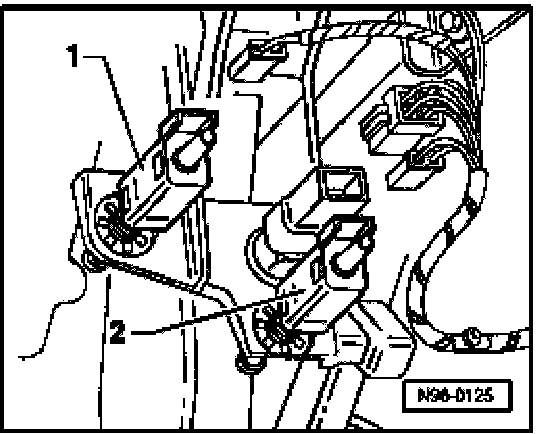

Procedure is the same for both the clutch vent valve -1- and brake vent valve -2-.







Removing
- Remove lower instrument panel cover, left.
- Disconnect electrical connector and pull vacuum hose off.
- Unscrew vent valve from bracket.

Installing
- Pedal in rest position.
- Screw vent valve into bracket onto stop.
- Reconnect electrical connector and vacuum hose.
