Cruise Control Servo: Adjustments

Vacuum Servo Rod, Adjusting







4 Cylinder engine
- Start engine and run at idle (throttle housing in idling speed position)

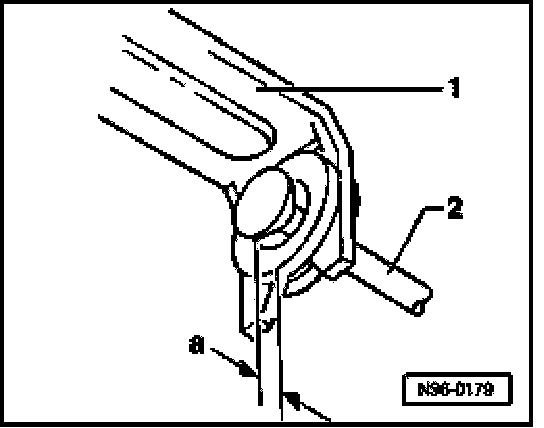

- Turn rod -2- in onto stop and then turn back one turn (360 degrees ± 90 degrees).
Play -a- between rod -2- and vacuum servo linkage -1- must be between 0.5 mm and 1.0 mm (0.019 inch and 0.03 inch)
- Secure servo linkage to keep from turning.
