Procedures

Brake vacuum pump -V192-, removing and installing
It is not possible to service the brake vacuum pump -V192-. If there is a malfunction, replace the brake vacuum pump -V192-.

Removing

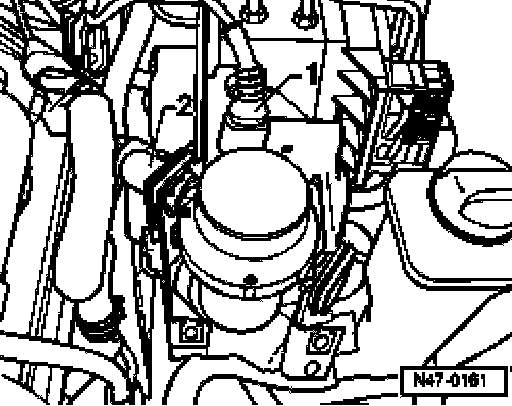

^ Separate connector -1-.
^ Disconnect vacuum hose-2-from brake vacuum pump-V192-.

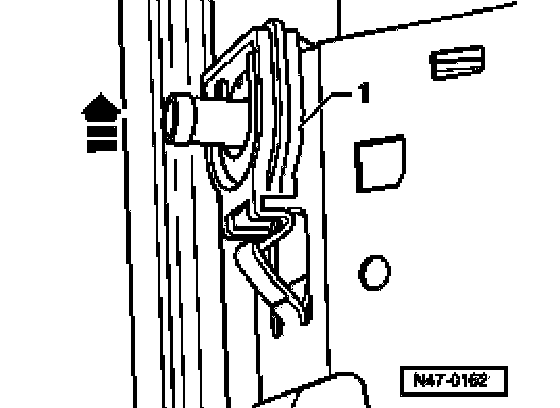

^ Remove clip -1-.
^ Remove brake vacuum pump -V192- upward in direction of arrow.

Installing
Install in reverse order.
