Parking Brake Lever, Assembly Overview

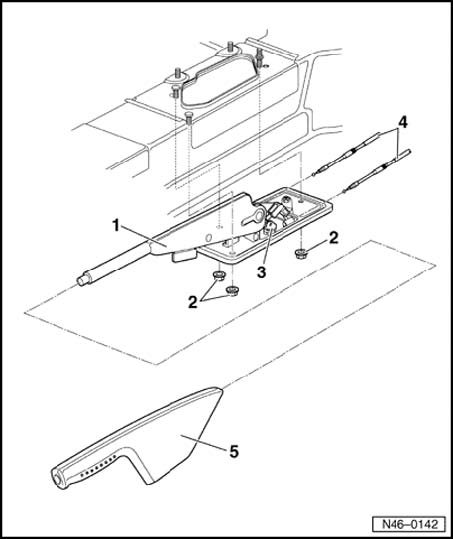

Parking brake lever, assembly overview





1 - Parking brake lever
^ Before removing, remove center console

2 - Hex nut, 23 Nm

3 - Compensator

4 - Parking brake cables

5 - Trim for parking brake handle
^ Pull off forward
