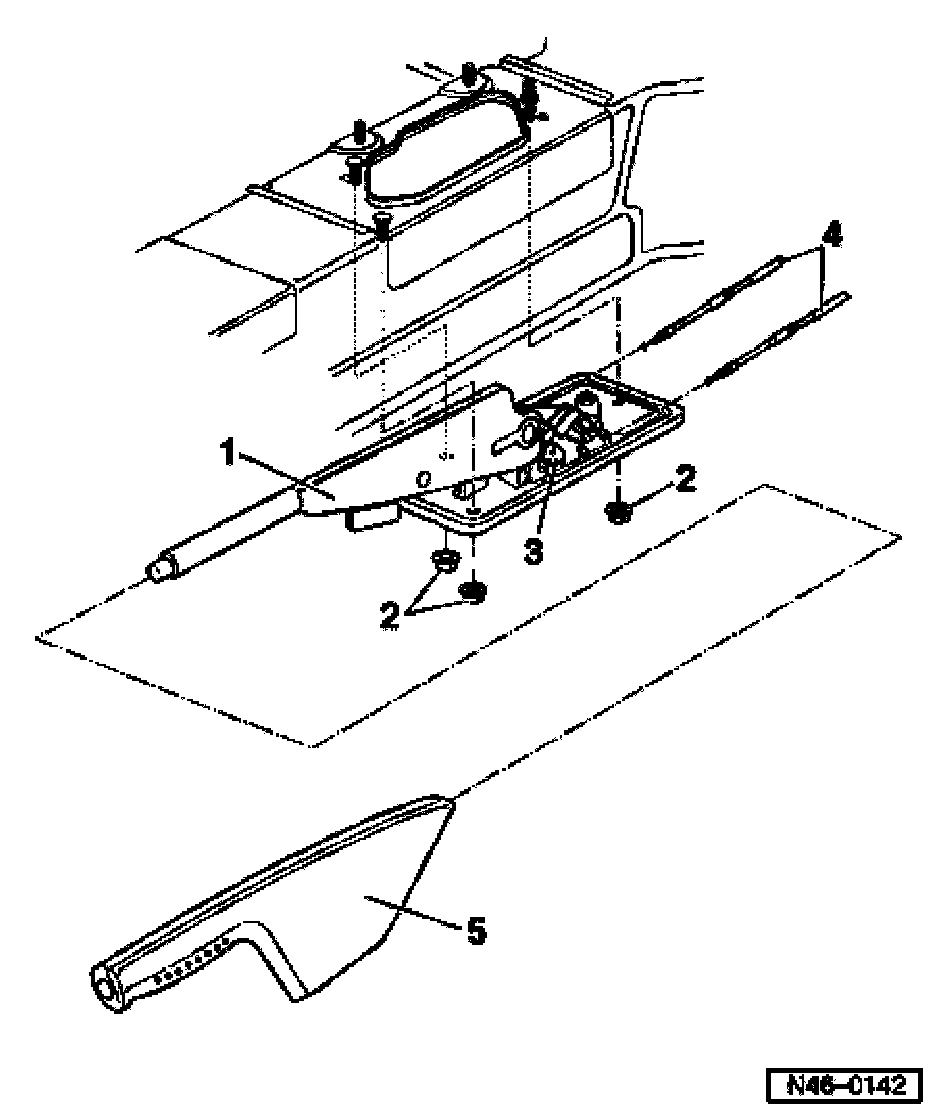

Parking Brake Lever- Assembly Overview

Parking brake lever- assembly overview
1 - Parking brake lever
^ Remove center console before removing
2 - Hex nut, 23 Nm
3 - Compensator
4 - Parking brake cables
5 - Parking brake lever trim
^ Pull forward front
