Procedures

Parking brake cables (All Wheel Drive), removing and installing
Removing
^ Remove rear wheels.

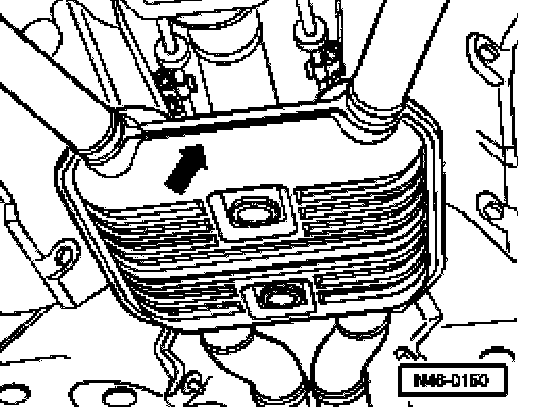

^ Remove exhaust system (arrow).

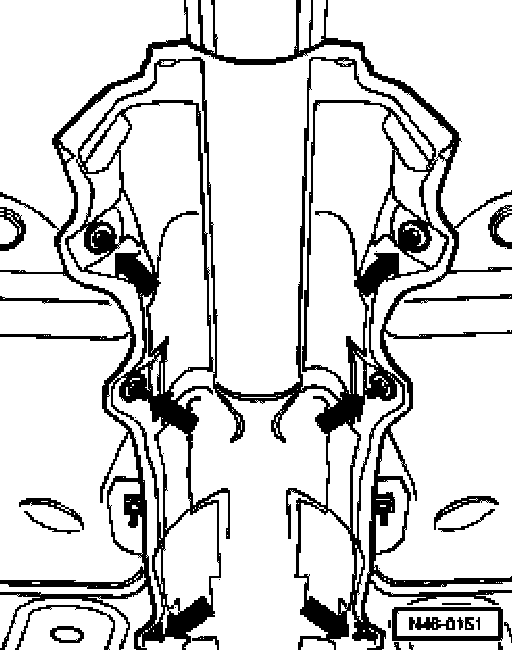

^ Unscrew retaining nuts (arrows) from heat shield and remove.

Note: Adjusting the parking brake cables are located in front of the lower control arm.

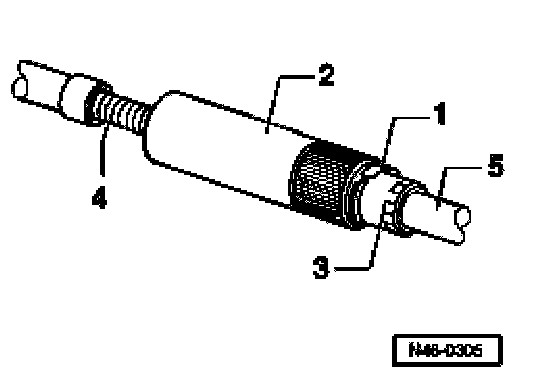

^ Remove locking element-1-.
^ Screw in adjusting nut -2- until stop. To do this, counter-hold using an open-ended wrench (13 mm) in area -3-.

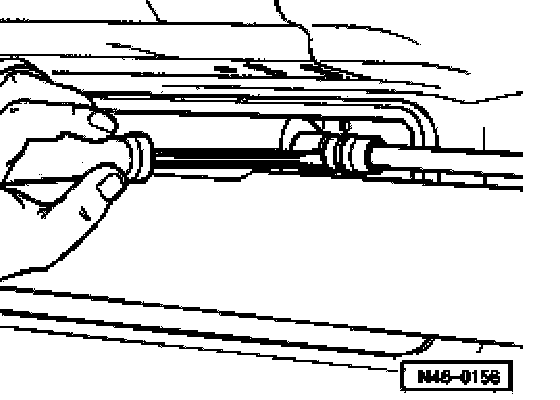

^ Push both cable sleeves -4- and -5- together.

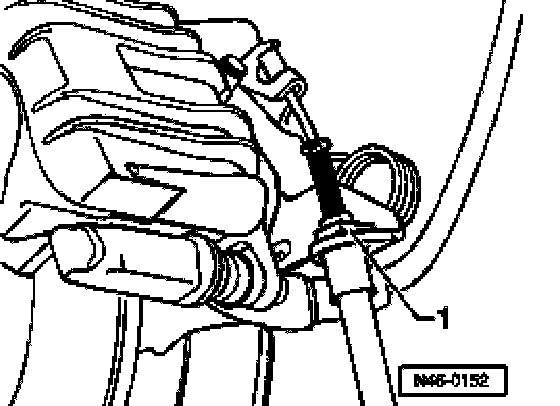

^ Pull out securing clip -1- and unhook parking brake cable from brake caliper.

Note: Do not damage parking brake boots when removing and installing.

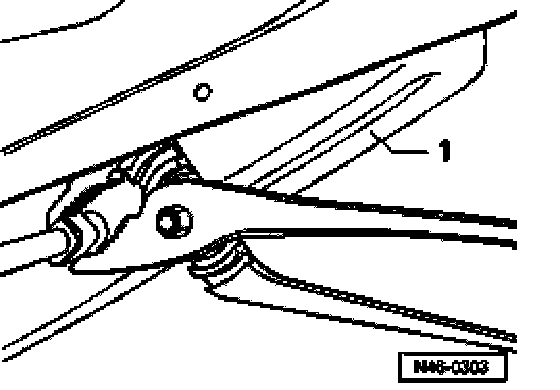

^ Squeeze plugs together using pliers on parking brake cable and take parking brake cable out through hole in lower control arm -1-.

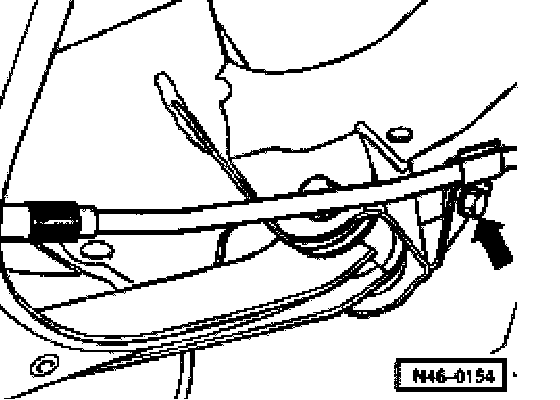

^ Remove parking brake cable from retaining bracket (arrow) on rear axle.





^ Unclip brake pipes from retainers (arrows).





^ Pry parking brake cable out of console with a screwdriver.
^ Remove center console extension,

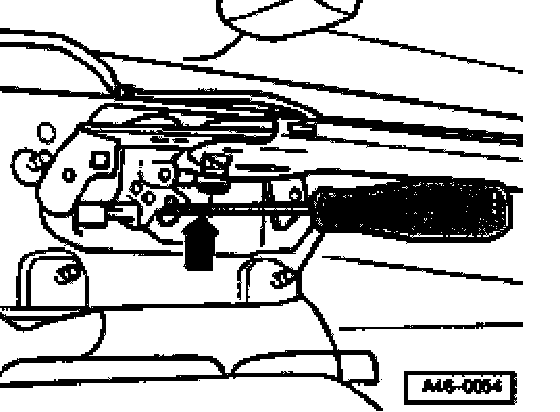

^ Using a screwdriver press parking brake cable in direction of parking brake lever and push ball out of retainer.
^ Remove parking brake cable.

Installing





^ Remove any plastic parts on compensator; they do not need to be re installed.

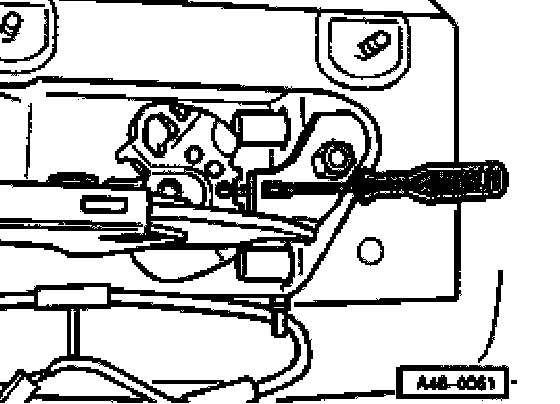

^ Prevent compensator from turning by counterholding using a screwdriver.
^ Insert ball head in compensator via console.
Parking brake cable must engage in console.
^ Secure parking brake cables to rear axle beam.
^ Adjust parking brake, Refer to Parking Brake System, Adjustments
^ Install center console extension.
