FN3 Brake Caliper, Servicing

FN3 brake caliper, servicing

Note:
^ Only use mineral spirits to clean brake parts.
^ When carrying out repairs, install all parts supplied in repair kit.
^ New brake calipers are filled with brake fluid and pre-bled.
^ Apply thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.

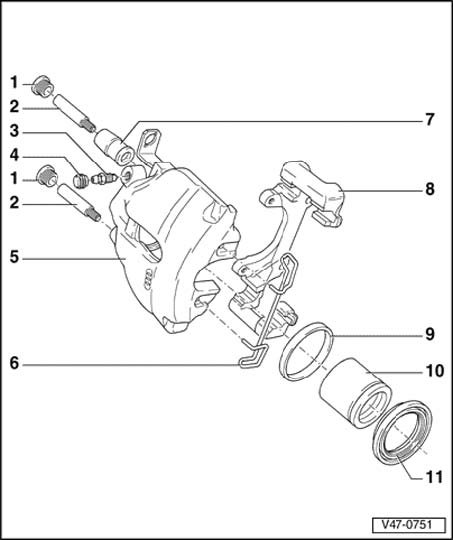

1 - Caps
^ Insert into bushing

2 - Guide pins, 25 Nm

3 - Bleeder valve
^ Apply a thin coat of assembly paste G 052 150 A2 to the threads before screwing in.

4 - Protective cap
^ Push onto bleeder valve

5 - Brake caliper housing

6 - Retaining spring
^ Insert both ends into holes of brake caliper housing

7 - Bushing
^ Insert into brake caliper housing

8 - Carrier
^ Fastened with brake caliper housing

9 - Seal ring

10 - Piston
^ Apply thin coat of assembly paste G 052 150 A2 to piston before installing
^ Piston diameter 57 mm

11 - Protective cap
^ Do not damage when installing piston
