2FN Brake Caliper, Servicing

2FN brake caliper, servicing

Note:
^ Only use mineral spirits to clean brake parts.
^ When carrying out repairs, install all parts supplied in repair kit.
^ New brake calipers are filled with brake fluid and pre-bled.
^ Apply thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.

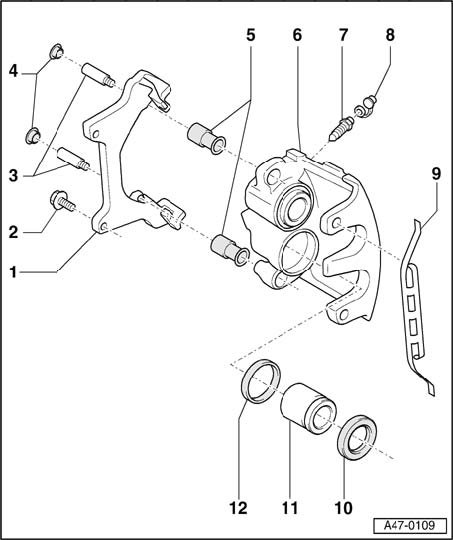

1 - Carrier
^ Fastened with brake caliper housing

2 - Ribbed bolt, 190 Nm
^ Clean if re-using

3 - Guide pins, 25 Nm

4 - Caps
^ Insert into bushing

5 - Bushing
^ Insert into brake caliper housing

6 - Brake caliper housing

7 - Bleeder valve
^ Apply a thin coat of assembly paste G 052 150 A2 to the threads before screwing in.

8 - Protective cap
^ Push onto bleeder valve

9 - Retaining spring
^ Insert both ends into holes of brake caliper housing and then press it under the brake carrier

10 - Protective cap
^ Do not damage when installing piston

11 - Piston
^ Apply thin coat of assembly paste G 052 150 A2 to piston before installing

12 - Seal ring
