Brake Pedal, Removing and Installing

Brake pedal, removing and installing

Special tools and equipment
^ T10006A Release tool

Removing
^ Remove cover, driver side.
^ Pull back and remove brake light switch, if necessary, the brake pedal switch.





^ First press brake pedal in direction of brake servo and hold.

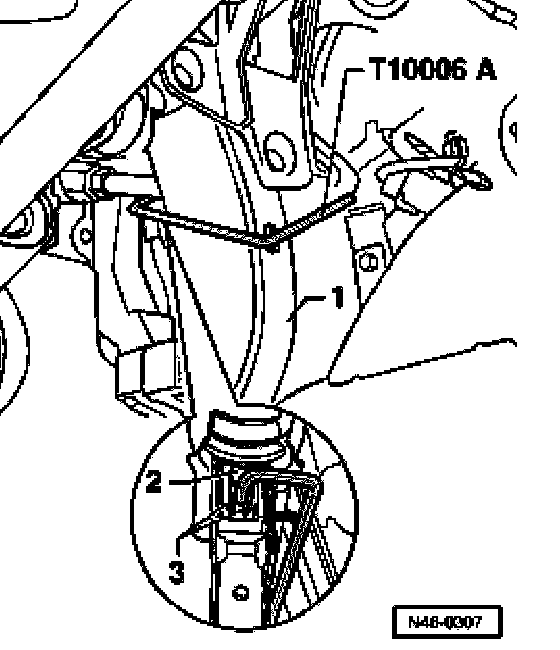

^ Insert special tool T10006A and pull in direction of driver's seat. When doing this, counterhold brake pedal. (At this point the pedal must not be allowed to move backward). The mounting retaining lugs -3- will then be pressed from the ball head of the push rod -2-.
1 - Brake pedal
2 - Push rod
3 - Retaining lugs
^ Pull special tool T 10006 A together with brake pedal toward the driver's seat. (The brake pedal will then be pulled off the ball head of the push rod).
^ Pull brake pedal from push rod.

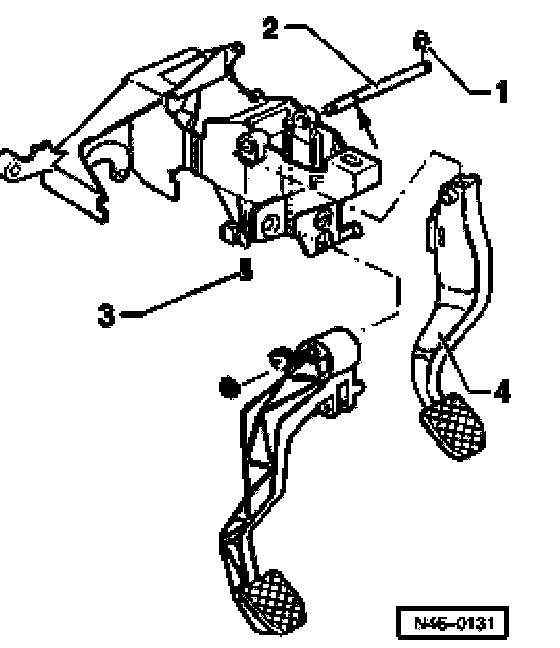

^ Pull securing clip -1- from clutch and brake pedal pivot pin -2-.
^ Loosen socket head bolt -3- until it is no longer seated in the groove -arrow-.
^ Push pivot pin -item 2- to the left until the brake pedal can be removed.
^ Remove brake pedal.

Installing
Installation is carried out in the reverse sequence, note the following:
^ Do not tighten socket head bolt -3- until retaining clip has been installed to clutch and brake pedal pivot pin.

Joining brake pedal to brake servo
^ Hold push rod ball head in front of mounting and push brake pedal in direction of brake servo until ball head engage audibly.
^ Adjust brake light switch and, if necessary, brake pedal switch, Refer to Lighting and Horns, Brake Light Switch, Adjustments
