Brake Pedal - Assembly Overview

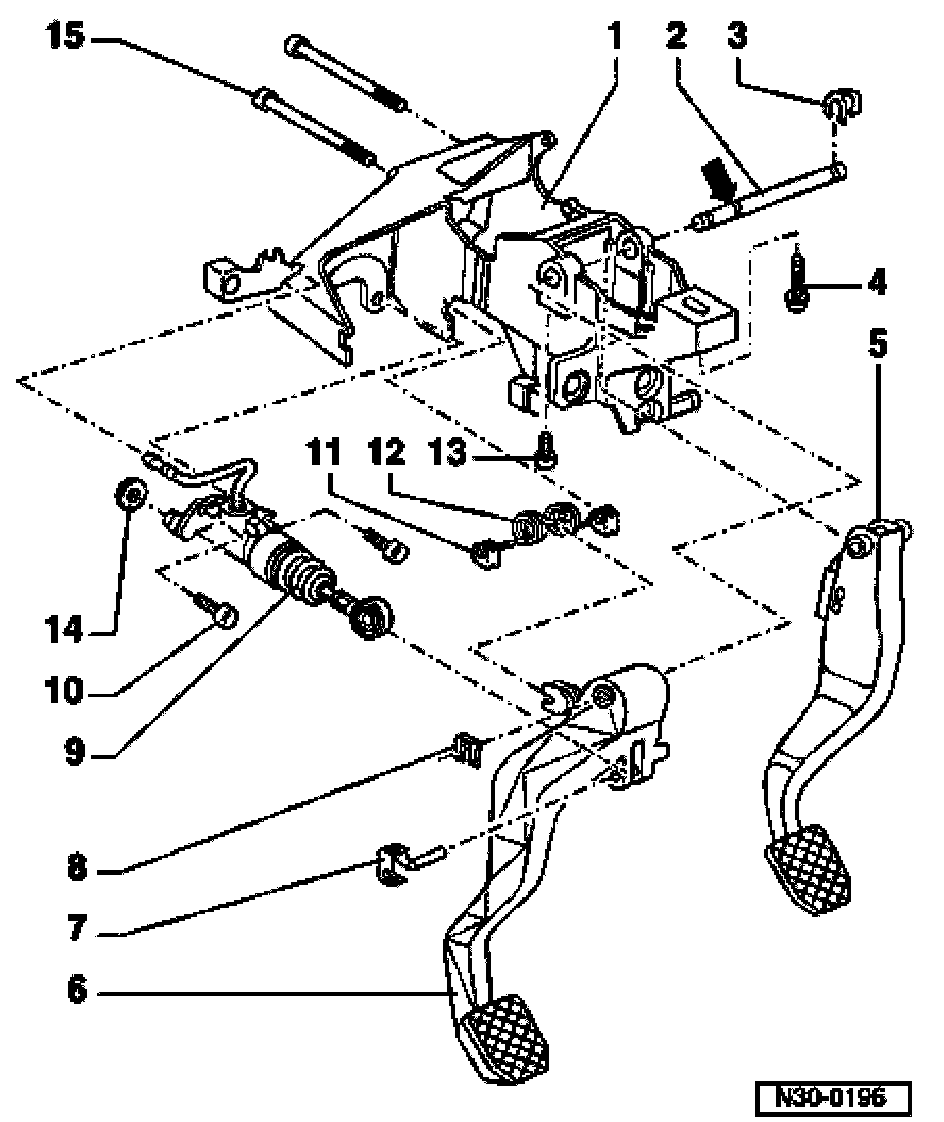

Brake pedal - assembly overview

WARNING! Brake pedal travel must not be restricted by additional floor covering.

1 - Mounting bracket
2 - Pivot pin for clutch and brake pedal
^ Installation position: The groove (arrow) faces towards clutch pedal.
3 - Locking clip
4 - Hex socket head bolt, 25 Nm
5 - Brake pedal
6 - Clutch pedal
7 - Pin
^ Always replace
8 - Locking clip
9 - Master cylinder
10 - Hex socket head bolt, 20 Nm
11 - Mounting
^ Install in mounting bracket with over-center spring
^ Installation position: Deep groove faces downward
^ Use Parts Supplier to check correct application
12 - Over-center spring
^ Allocation: Parts Supplier
13 - Hex socket head bolt, 5 Nm
^ Securing clutch pedal and brake pedal pivot pin
14 - Seal
15 - Torx screw, 25 Nm
^ Secures the brake master cylinder and brake servo
