Wheel Housing Stiffening Plate

Body - Front

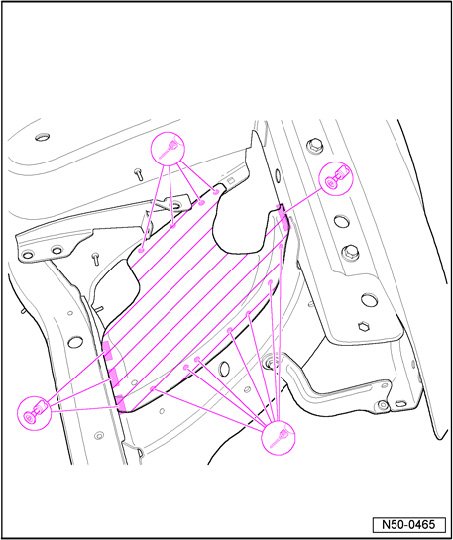

Wheel Housing Stiffening Plate, Replacing 10.00

CAUTION: Observe safety precautions!


Removing
- Cut out the wheel housing stiffening plate.

Separating areas







- Separate the original connection.
- Remove residual material.

Replacement part
- Wheel housing stiffening plate

Welding







- Weld in replacement part, SG continuous seam.
- Spot weld remainder of joint, Straight-line spot weld seam.
