Motor For Seat Height Adjustment, Removing and Installing

Motor For Seat Height Adjustment, Removing And Installing

Removing
- Bring Recaro seat via electric seat adjustment to upmost position.
- Remove Recaro seat.
- Remove seat cushion extension.
- Remove trim, backrest mounting bracket.
- Remove spring cover.
- Remove seat cushion.

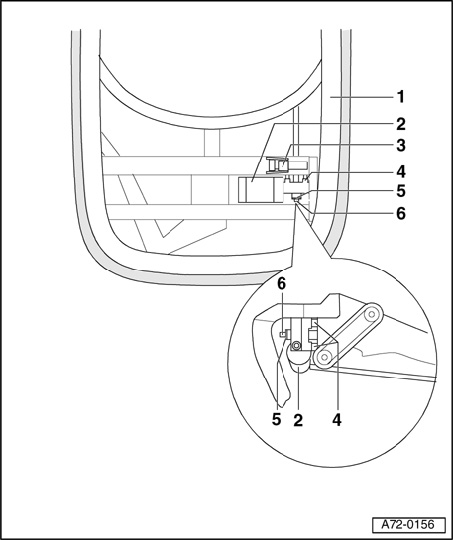

- Disconnect wiring harness from motor for seat height adjustment - 4 -.
- Remove connector housing - 3 - from seat frame - 1 -.
- Using a screwdriver, pry locking washer - 5 - off shaft - 6 -.
- Pull motor off shaft.

Installing







Installation is the reverse order of removal.

NOTE: When installing, make sure bushings - 4 - are properly seated in seat frame.
