Sunroof / Moonroof Track: Service and Repair

Slotted Guide Rail, Removing

- Removing glass panel for sunroof
- Removing installation unit
- Removing drive motor for sunroof

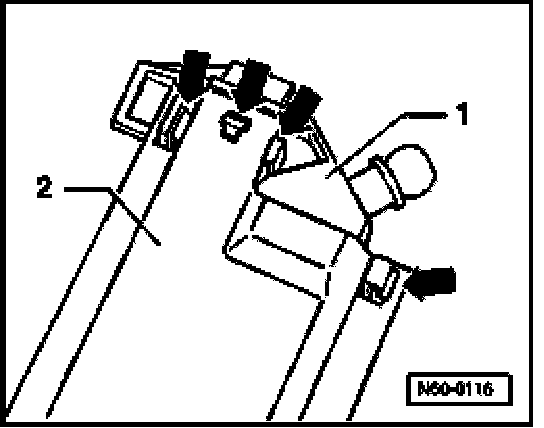

- Unclip end piece -1 - from guide rail - 2 - - arrows - and then remove.

NOTE: When installing end piece -1 -, seal against guide rail with butyl adhesive sealing cord AKL 450 005 05.

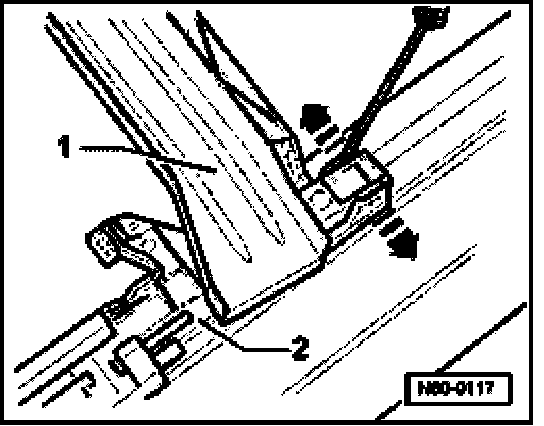

- Using a screw driver, remove water channel -1 - carefully on both sides at bearing on guide catch - 2 - and remove.

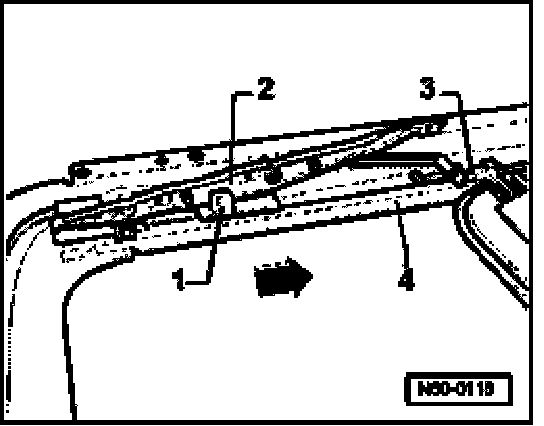

- Slide rear guide -1 - in direction of - arrow - in guide rail - 4 - until lock mechanism of guide catch - 3 - is released.







- Remove rear guide -1 -, guide catch - 3 - and slotted guide rail - 2 - together out of guide rail - 4

NOTE: Always replace guides and cable as a set.
