Sunroof / Moonroof Drain: Service and Repair

Water Drain Hoses, Cleaning

NOTE: For cleaning, it is recommended that you create your own assisting tool out of a speedometer inner cable, approx. 2300 mm (90.5 in.) long.

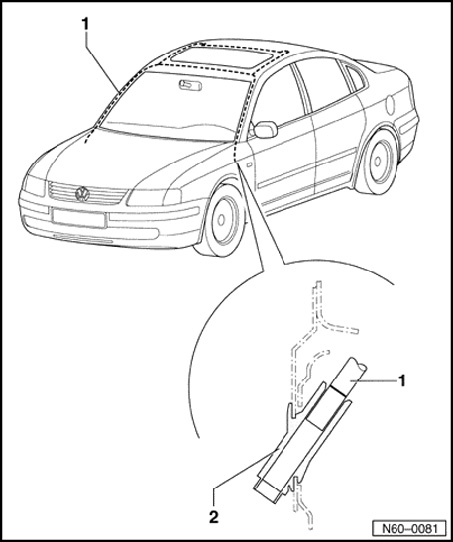

Front water drain hoses







Front water drain hoses - 1 - are routed in A-pillar and end between door and A-pillar. Cleaning is performed at cut out for sunroof.

1 - Front water drain hoses
2 - Hose sleeve

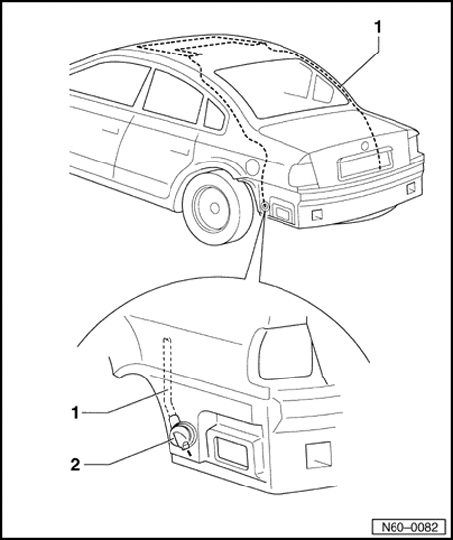

Rear water drain hoses







Rear water drain hoses - 1 - are routed in C-pillar and end at side behind bumper cover. Cleaning is performed at lower end of hose. To do so, rear bumper must be removed

1 - Water drain hose
2 - Hose sleeve

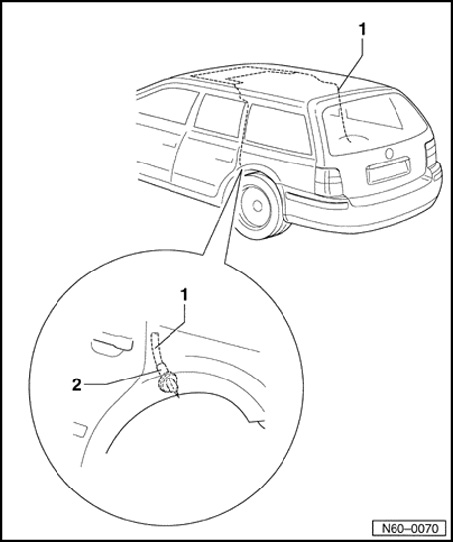

Rear water drain hoses, wagon







Rear water drain hoses - 1 - are routed in C-pillar and end in rear wheel housings. Cleaning is performed at lower end of hose. To do so, wheel housing liner must be removed

1 - Water drain hose
2 - Hose sleeve
