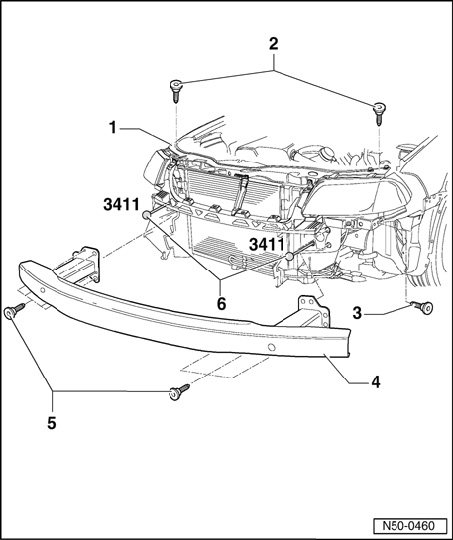

Lock Carrier And Front Bumper Reinforcement, Service Position, Assembly Overview

Lock Carrier And Front Bumper Reinforcement, Service Position, Assembly Overview 10.00 >






1. Lock carrier with attachments
2. Bolt
Qty 2
8 Nm

3. Bolt
Qty.3
6 Nm

4. Bumper carrier
5. Bolt
Qty.7
50 Nm

6. Guide rods 3411
