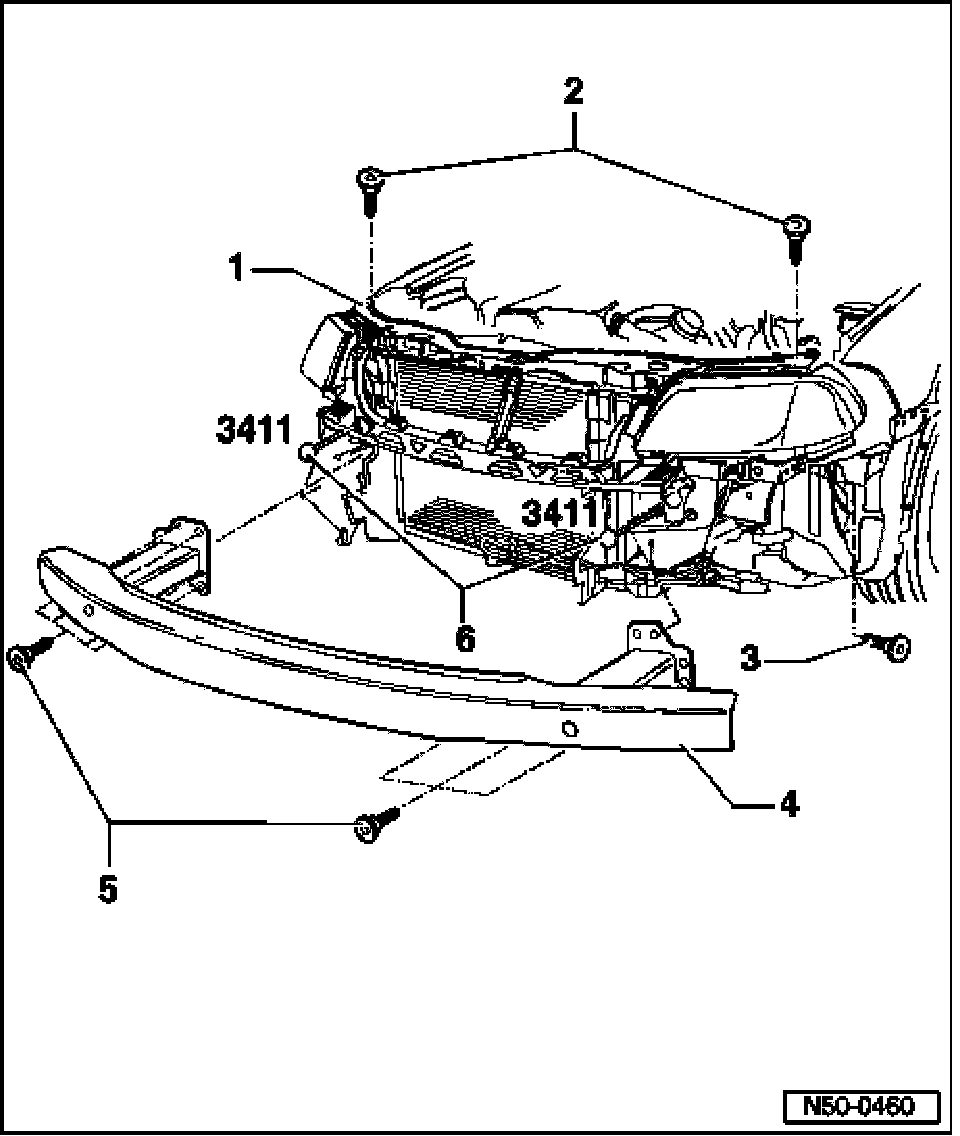

Lock Carrier and Front Bumper Reinforcement, Service Position, Assembly Overview

Lock Carrier And Front Bumper Reinforcement, Service Position, Assembly Overview 10.00 >







1. Lock carrier with attachments
2. Bolt
- Qty 2
- 8 Nm
3. Bolt
- Qty 3
- 6 Nm
4. Bumper carrier
5. Bolt
- Qty 7
- 50 Nm
6. Guide rods 3411
