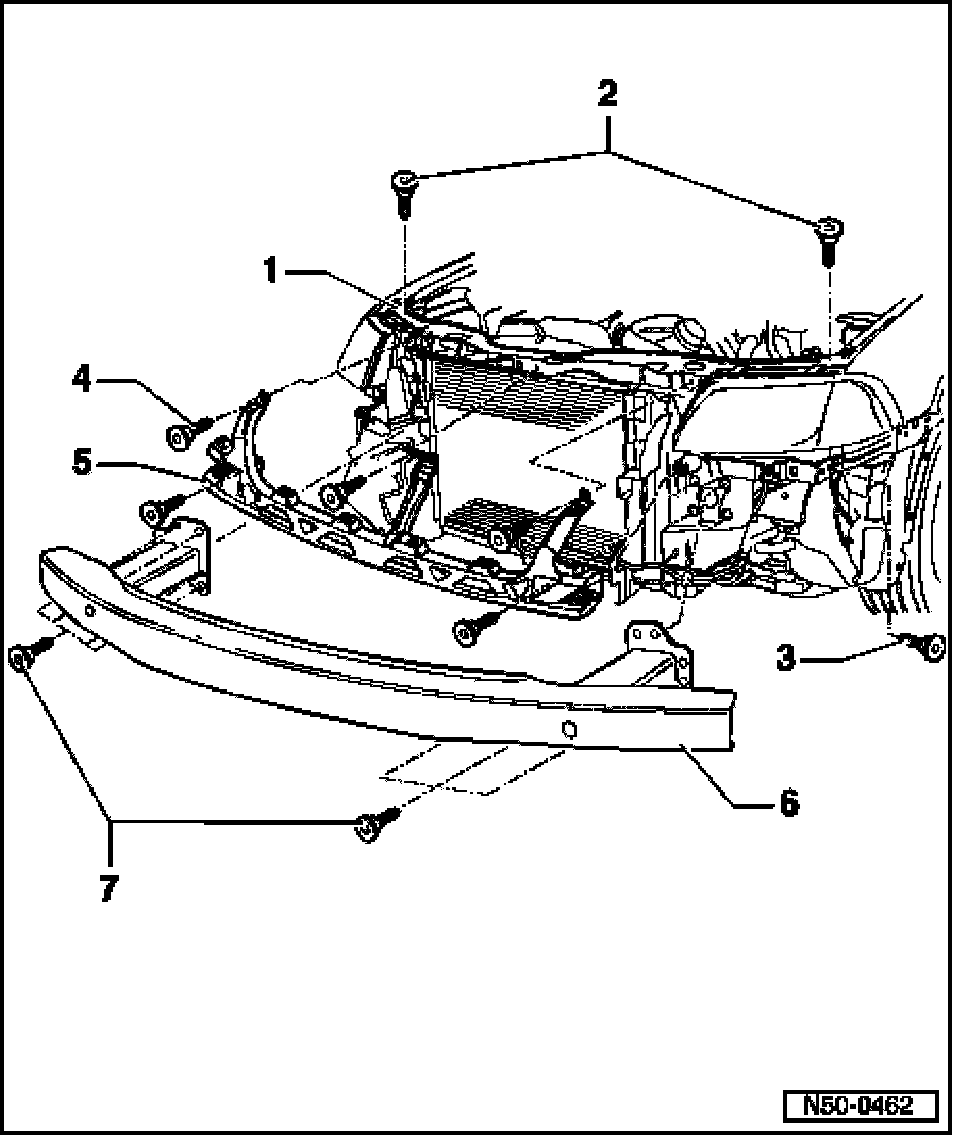

Lock Carrier and Front Bumper Reinforcement, Assembly Overview

Lock Carrier And Front Bumper Reinforcement, Assembly Overview 10.00 >







1. Lock carrier with attachments
2. Bolt
- Qty 2
- 8 Nm
3. Bolt
- Qty 3
- 8 Nm
4. Bolt
- Qty 5
- 6 Nm
5. Mounting frame
6. Bumper carrier
7. Bolt
- Qty 7
- 50 Nm
