Door Lock Cylinder: Service and Repair

Lock Cylinder Housing, Removing And Installing

Removing
- Remove cap - 3 -.

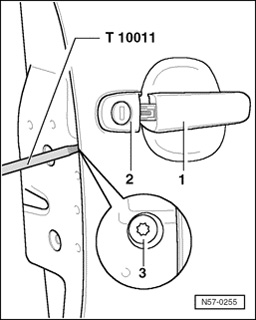

- Pull door handle - 1 - and hold in this position. Remove bolt - 3 - using Torque wrench T 10011 ( Socket wrench T 10072 introduced as running change) until stop. Lock cylinder housing - 2 - is loosened by doing so.

NOTE: Removing bolt too far may result in locking ring releasing from mounting bracket and falling into door.







- Remove lock cylinder housing - 2 - at right angle to door from door handle mounting bracket.

Installing
- Insert lock cylinder housing - 2 - at right angle into door handle mounting bracket - 1 -.
- Using Socket wrench T 10011 ( Socket wrench T 10072 has been introduced as a running change), screw bolt - 3 - into mounting bracket.

Door handle - 1 - engages again into lock cylinder housing - 2 - with an audible click.

NOTE: During installation, door handle and lock cylinder housing must be pressed onto door plate.







- Perform rest of installation in reverse order of removal.

- Then a function test must be performed, since door cannot be opened if adjustment and clips of Bowden cable are not correct.
