Luggage Compartment Trim, Removing and Installing

Luggage Compartment Trim, Removing And Installing

Removing

NOTE: The illustrations cover only the right side of the vehicle, the left side of the vehicle is the mirror image.

- Remove lock carrier.
- Remove right backrest for rear seatbench.
- Switch ignition off.







- Loosen hex nut - 2 - and remove lock bolt - 3 -.

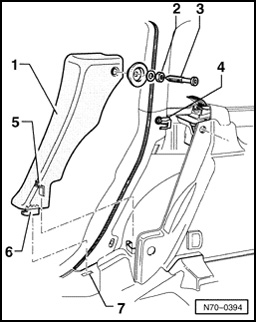

- Pull upholstery - 1 - in upper area out of clip - 4 -, press lower tab - 6 - to rear from sill panel - 7 - and remove upward with tab - 5 -.







- Remove bolts - 1 -.
- Remove tie-down - 2 -.
- Remove clips - 4 -.
- Unscrew plug - 5 - from threaded pin - 6 -.
- Remove trim - 3 -.

Installing
Installation is performed in the reverse order of removal.
