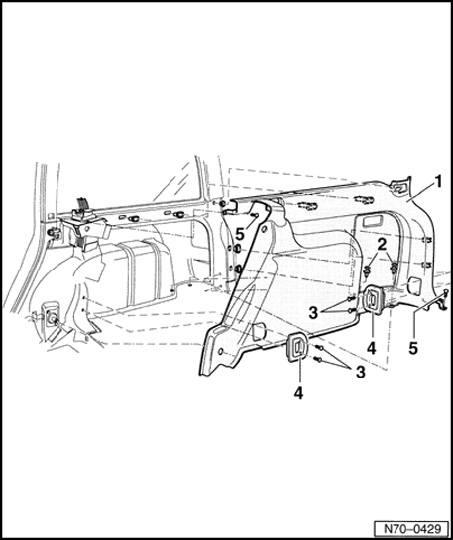

Assembly Overview

Assembly Overview







1 - Trim
2 - Expanding clip
3 - Bolts for tie-downs
4 - Tie-downs
5 - Bolts

Removing
- Switch ignition off.
- Remove luggage compartment cover.
- Remove cover for lock carrier.
- Remove right backrest for rear seatbench.
- Remove storage area floor covering.

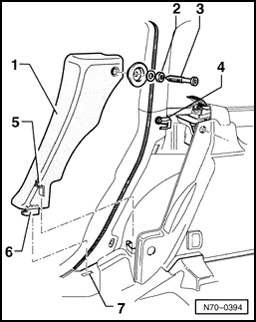

- Loosen hex nut - 2 - and remove lock bolt - 3 -.
- Pull upholstery - 1 - in upper area out of clip - 4 -, press lower tab - 6 - to rear from sill panel - 7 - and remove upward with tab - 5 -.







- Press out expanding clip - 2 - using Pry Lever - Rmv Outside Mirror 80-200.
- Remove bolts - 3 - and remove tie-downs - 4 -.
- Remove bolts - 5 -.
- Remove trim - 1 -.

Installing
Installation is performed in the reverse order of removal.
