D-Pillar Trim

Upper D-pillar Trim, Removing And Installing (Wagon)

Removing

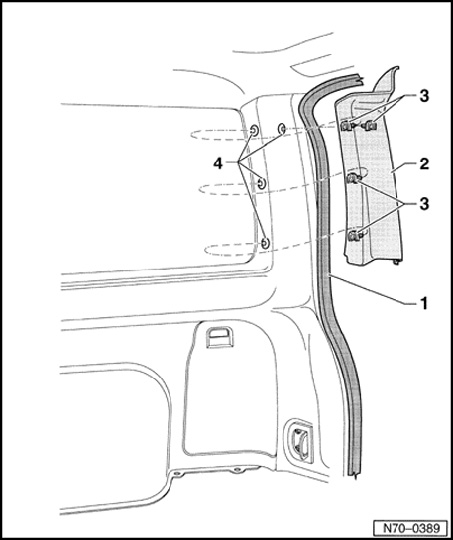

- Pull off seal - 1 - in area of trim - 2 -.
- Pry off trim - 2 - from D-pillar using Pry Lever - Rmv Outside Mirror 80-200 and pull out upward.

Installing







NOTE: Before installing trim - 2 -, check clips - 3 - and mounting sleeves - 4 -, replace if necessary.

- Insert clips - 3 - into mounts for trim - 2 - and press sleeves - 4 - into C-pillar holes.
- Insert lower edge of D-pillar trim panel - 2 - behind luggage compartment side trim and clip into D-pillar.
- Make sure that seal - 1 - is properly seated.
