Lower B-Pillar Trim, Removing and Installing

Lower B-pillar Trim, Removing And Installing

Removing
- Remove lower A-pillar trim.
- Unclip door sill trim from front unto behind B-pillar.
- Remove upper B-pillar trim.

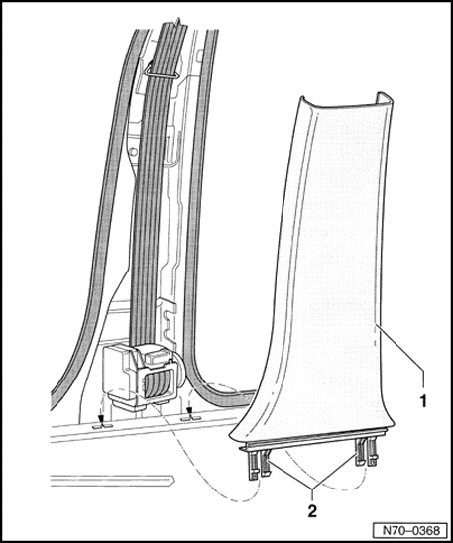

- Unclip trim - 1 - from B-pillar from top to bottom.
- Press catches - 2 - in direction of B-pillar and pull out trim upward out of mounts in sill panel.

Installing
Installation is performed in the reverse order of removal.

NOTE: After installing trim, make sure that door seals are properly seated.
