Upper A-Pillar Trim, Removing and Installing

Upper A-pillar Trim, Removing And Installing

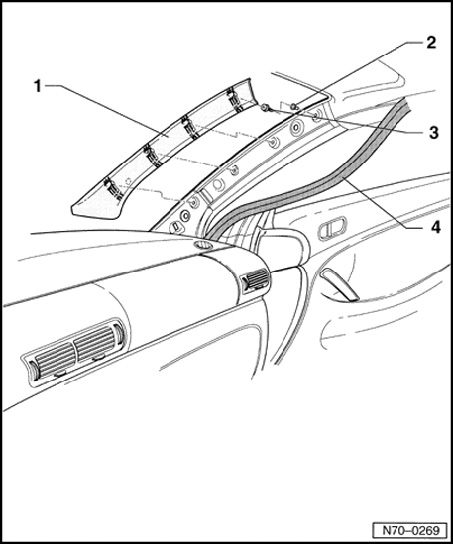

Vehicles without head-level airbag







1 - Trim
- Unclip trim, starting at top.
- Remove trim upward.

2 - Sleeve
- 4x

3 - Clip
- 4x

4 - Gasket
- after assembling trim, make sure seal is properly fitted

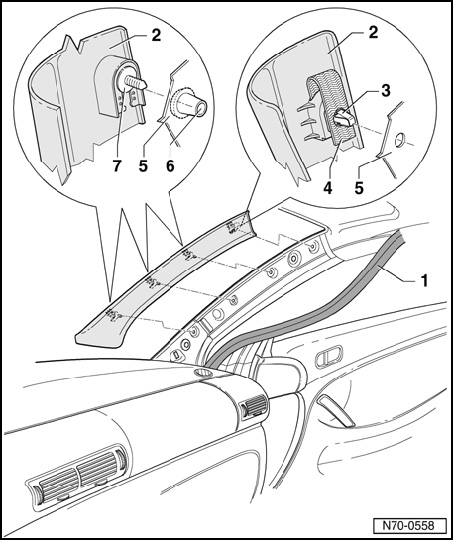

Vehicles with head-level airbag

NOTE: Upper A-pillar trim must be replaced after removal as it cannot be removed without being destroyed.







1 - Gasket
2 - Trim
- Unclip trim, starting at top.
- Remove trim upward.

3 - Clip
- Destroyed when removed.

4 - Catch strap
5 - A-pillar
6 - Sleeve
- 3 pieces

7 - Clip
- 3 pieces
