Rear Shelf: Service and Repair

Rear Shelf, Removing And Installing

Removing
- Switch ignition off.







- Push backrests forward.

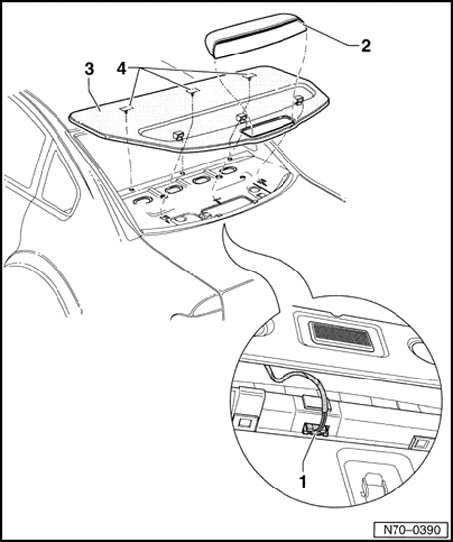

- Disconnect connector - 1 - from auxiliary brake lights - 2 -.
- Unclip rear shelf - 3 - and remove.

Installing







Installation is performed in the reverse order of removal.

NOTE: Check clips - 4 - before installing, replace if necessary and insert into rear shelf - 3 -.
