Molded Headliner With Sunroof, Removing and Installing (Sedan)
Molded Headliner With Sunroof, Removing And Installing (Sedan)
Removing
NOTE: Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.
- Switch ignition off.
- Remove upper A-pillars trim.
- Removing upper C/D-pillars trim.
- Unclip upper trim - 1 - from pillar - B - at sides first, then in upper area.
- Belt end fitting - 2 - does not need to be removed.
Remove grab handles (roof).
- Fold grab handle - 1 - downward.
- Pry up covers - 2 - using a screwdriver and fold upward.
- Unscrew Phillips-head bolts - 3 - and remove grab handle - 1 -.
- Unclip trim - 1 - in direction of arrow and remove.
- Unscrew bolts - arrows - and remove automatic rotary switch.
- Unclip and disconnect harness connector.
Removing sun visors

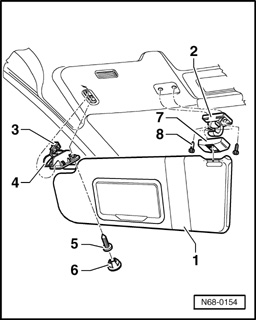

- Unhook sun visor - 1 - out of mount - 2 -.
- Pry off cap - 6 -.
- Remove bolt - 5 -.
- Remove sun visor mount - 4 - from mounting and disconnect harness connector - 3 -.
- Pry off cap - 7 -.
- Remove bolts - 8 - and remove mounts - 2 -.
Removing interior lights
- Pry out interior light - 1 - and disconnect harness connectors.
Reading light with interior monitoring, removing

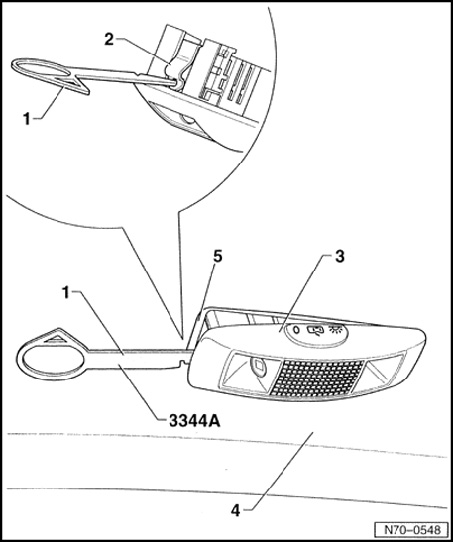

- Using Radio Removal Tool 3344A - 1 -, press spring for reading light - 2 - toward rear.
- Remove reading light - 3 - and disconnect harness connector.
NOTE: When operating spring - 2 -, make sure that Radio Removal Tool 3344A - 1 - does not stick between molded headliner - 4 - and metal frame - 5 -.

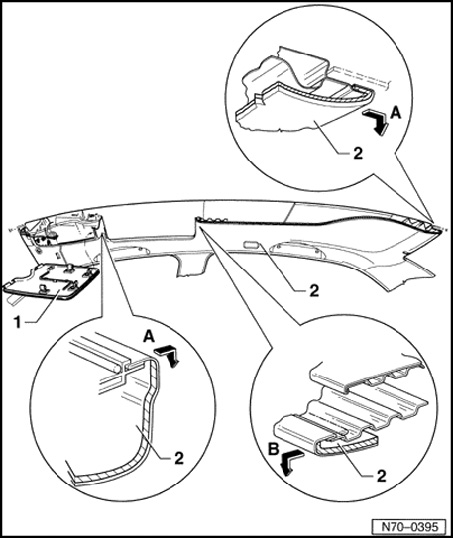

1 - Cover cap for sunroof drive
2 - Molded headliner
- Slide molded headliner - 2 - toward rear and pull down at front and rear arrows - A -.
- Slide molded headliner - 2 - toward front and lower arrow - B -.
- Disconnect wiring harness - 1 - from lowered molded headliner - 2 -.
Installing
Installation is performed in the reverse order of removal.
NOTE: When installing, wiring harness must be bonded firmly on molded headliner. A commercially available glue gun can be used to do so.
