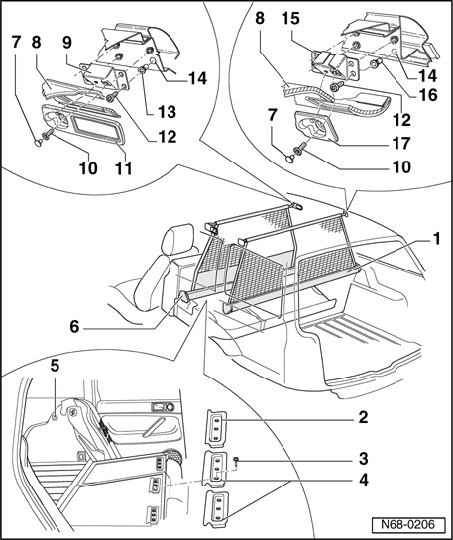

Screen Separator Wall Assembly Overview

Screen Separator Wall

Assembly Overview







1 - Screen separator wall
- Rear position, backrest set up

2 - Left retaining strip
3 - Bolt
- 9X
- 5 Nm

4 - Center and left retaining strip
5 - Collar
- For locking bolt

6 - Screen separator wall
- Front position, backrest folded up

7 - Concealment cap
8 - Molded headliner
9 - Front bracket
10 - Bolt
- 23 Nm

11 - Front eyelet
12 - Bolt
- 4X
- 23 Nm

13 - Internally threaded pop rivet
- 4 x
- M8 X 11

14 - Hex hole
- For internally threaded pop rivet

15 - Rear bracket
16 - Internally threaded pop rivet
- 4X
- M8 X 9

17 - Rear eyelet
