Luggage Compartment Cover, Removing and Installing

Luggage Compartment Cover, Removing And Installing

Removing

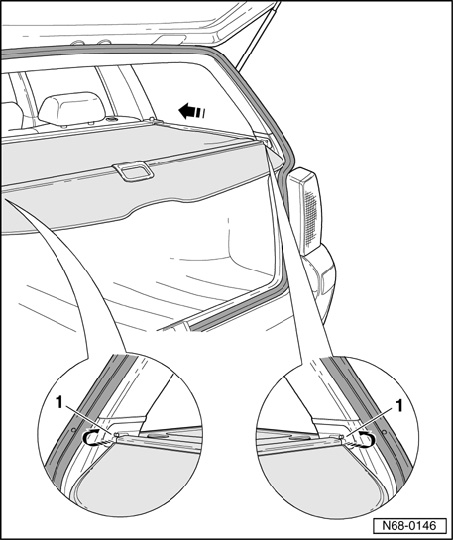

- Pull luggage compartment cover out of holders - 1 - toward rear.
- Carefully roll up in direction of arrow (automatic retractor).







- Press down latching button - 1 -.
- Remove luggage compartment cover upward out of right side trim - arrow -.







- Pull luggage compartment cover out of left side trim - 1 - - arrow -.

Installing







- Insert luggage compartment cover into left side trim - 1 - - arrow -.







- Engage luggage compartment cover into right side trim - 1 - - arrow -.

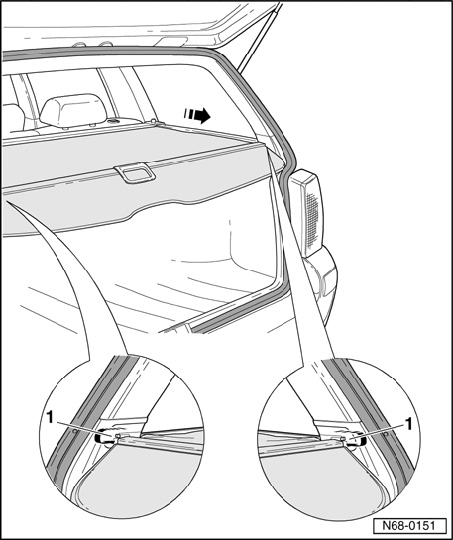

- Insert luggage compartment cover into rear brackets - 1 - - arrow -.
