Subframe and Final Drive, Overview

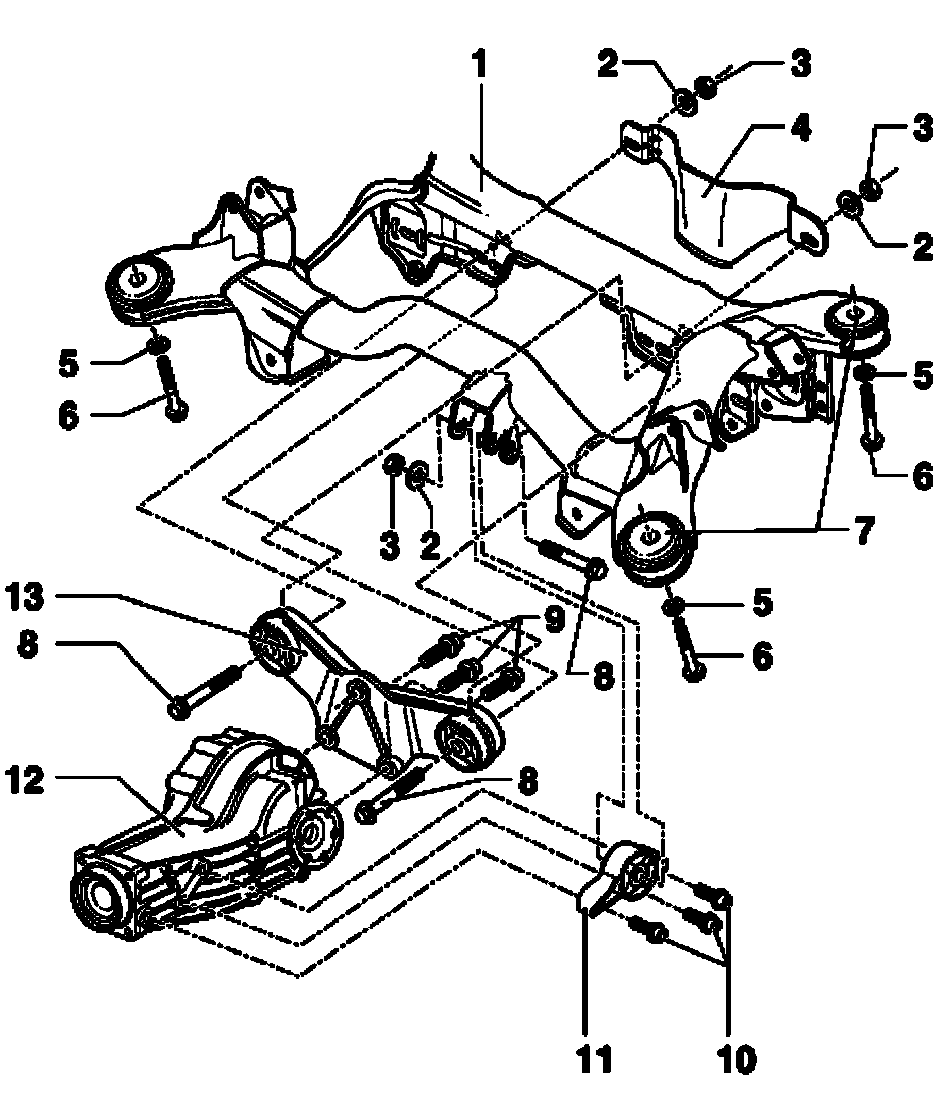

Subframe and final drive, overview





1. Subframe
^ Aligning subframe to vehicle

2. Washer
3. Nut, 40 Nm
4. Protective plate
5. Washer
6. Hex bolt
^ M12 x 1.5 x 130

7. Bonded rubber mounting
^ Replace bonded rubber bushing

8. Hex bolt
^ M10 x 75

9. Hex socket bolt
^ M10x45
^ 55 Nm

10. Hex socket bolt
^ M10x25
^ 40 Nm

11. Final drive support
^ Replace bonded rubber bushing

12. Final drive
13. Cross member
^ Replace bonded rubber bushing





Removing protective plate
^ Remove protective plate - 1 - from cross member - arrows -, if installed.

The cross member securing bolts remain installed on subframe.
^ To remove final drive:
