Rear Lid Unlock Motor -V53- Wagon, Removing and Installing

Rear Lid Unlock Motor -V53- - Wagon From 10.00, Removing And Installing

Proceed as follows:

Rear lid lock carrier, removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

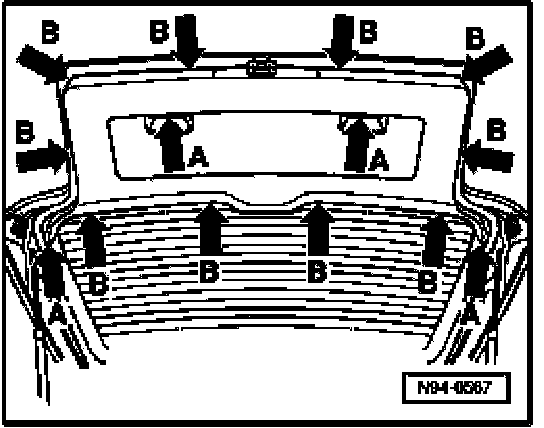

- Remove screws -arrows A-, unclip trim -arrowsB- and remove trim.







- Remove rear lock mounting screws -arrows- and partially pull out of rear lid.

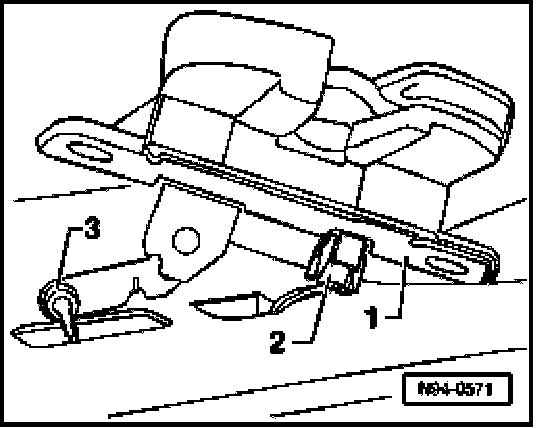

- Unclip cable -3-, disconnect electrical connection -2- and remove lock -1-

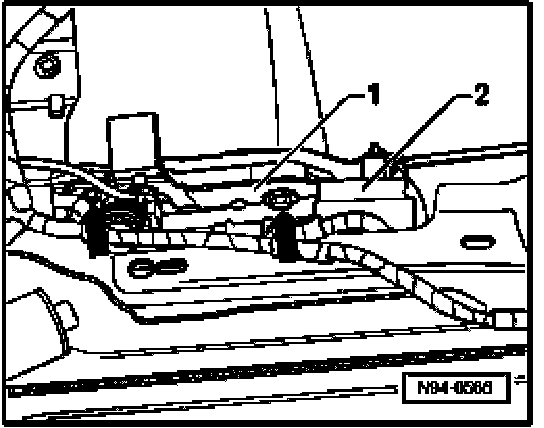

- Disconnect electrical connection -2-, remove hex nuts -arrows- and remove lock carrier -1-

Rear lid unlock motor, removing

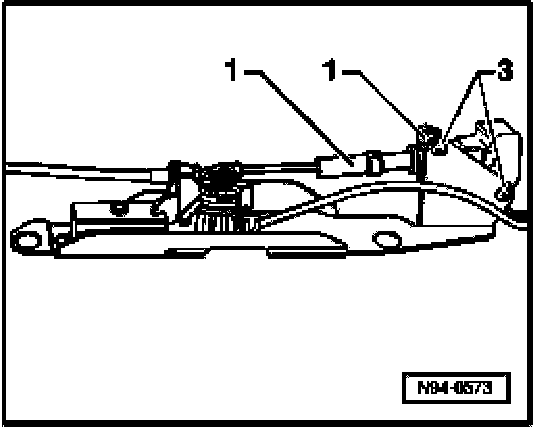

- Remove mounting screws for motor -3-, remove motor and unclip cable -1-

Installing
Install in reverse order of removal.
