Rear Lid Unlock Motor -V53- Sedan, Removing and Installing

Rear Lid Unlock Motor -V53- - Sedan From 10.00, Removing And Installing

Rear lid lock carrier, removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

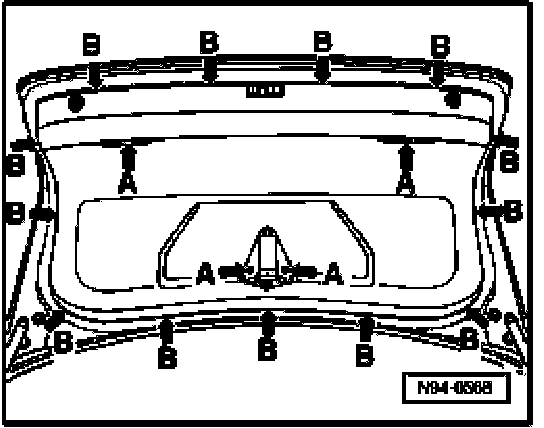

- Remove screws -arrows A-, unclip trim -arrows B- and remove trim.

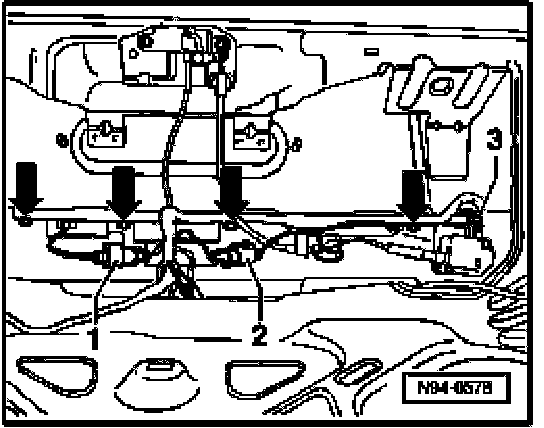

- Disconnect electrical connections -1-, -2- and -3-.
- Unclip cable at lock assembly.
- Remove hex nuts -arrows- and remove lock carrier.

Rear lid unlock motor, removing

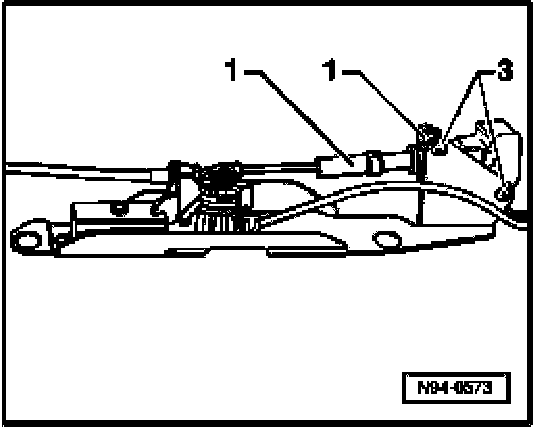

- Remove mounting screws for motor -3-, remove motor and unclip cable -1-.

Installing
Install in reverse order of removal.
