Lock Cylinder Carrier, Removing and Installing (Wagon)

Lock Cylinder Carrier, Removing And Installing (Wagon) --> 09.00

Removing
- Remove trim for tailgate.

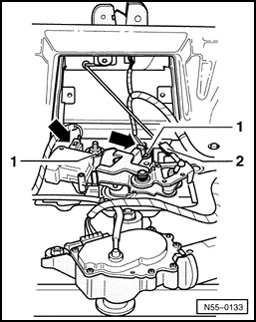

- Disconnect harness connectors - arrows -.
- Unclip operating rod - 2 - for tailgate.







- Remove nuts - 1 -.

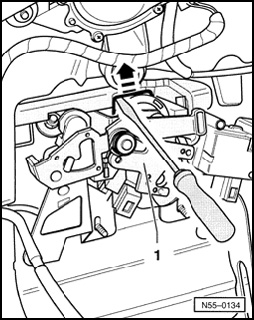

- Remove securing clamp in direction of - arrow - using a screwdriver and hold in place.







- Remove lock cylinder carrier - 1 - from tailgate and thereby from handle trim.

Installing
- Engage locking clamp again.
- Place complete carrier onto handle trim and threaded pins, and engage into handle trim with an audible click.
- Then proceed in reverse order of removal.
