Tailgate Lock And Lock Cylinder Carrier, Removing and Installing

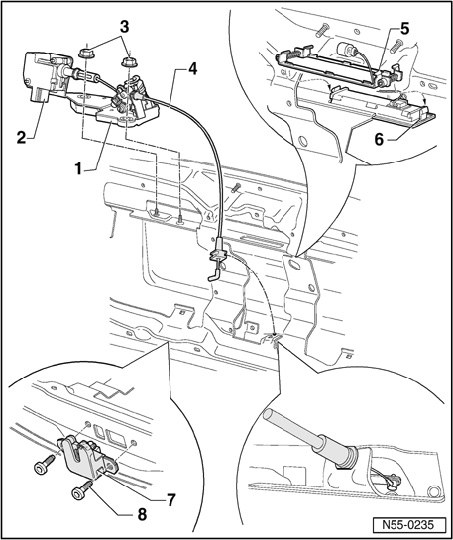

Tailgate Lock And Lock Cylinder Carrier, Removing And Installing 10.00 -->







1 - Lock cylinder carrier
- Removing.
- Disconnect harness connectors for license plate light, positioning motor for central locking system and switch on lock cylinder.
- Unclip Bowden cable - 4 - from lock. then, Remove nuts - 8 -.
- Lock cylinder carrier can be removed from tailgate.

- Installing:
- Installation is reverse of removal.

2 - Motor to unlock rear lid V139
3 - Nut
- Qty 2
- 7 Nm

4 - Bowden cable
5 - Mounting frame
6 - Push button for electric tailgate lock operation

7 - Lock
- Removing.
- Remove trim for tailgate.
- Unclip Bowden cable - 4 - from lock. n, Remove nuts - 8 -.
- Now, lock can be removed.

- Installing.
- Installation is reverse of removal.

8 - Bolt
- Qty 2
- 23 Nm
