Wagon

Lock Cylinder Housing, Removing And Installing 10.00 -->

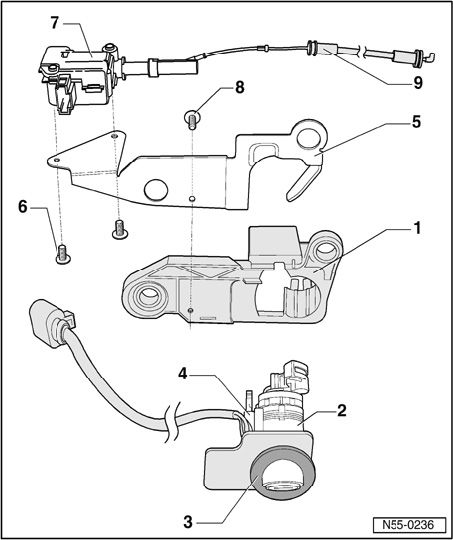

1 - Lock cylinder carrier
2 - Lock cylinder housing
- Clipped into rear panel.

3 - Seal
4 - Trunk lid release switch E165
5 - Carrier plate
- Bolted to lock cylinder carrier.

6 - Bolt
- Qty 2
- 2 Nm

7 - Motor to unlock rear lid V139
- Removing.
- Remove lock cylinder carrier - 1 -
- Unbolt motor and .

- Installing:
- Installation is reverse of removal.

8 - Bolt
- 2 Nm

9 - Bowden cable
