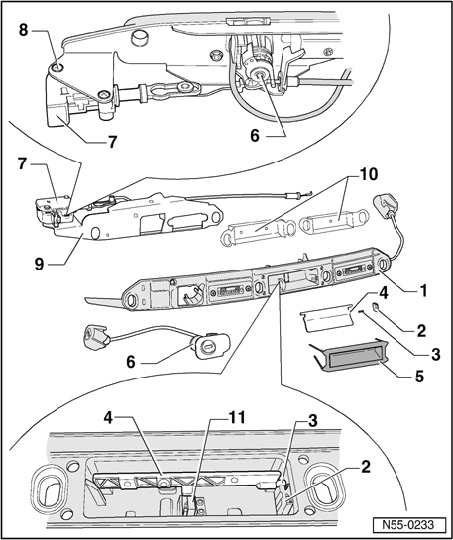

Lock Cylinder Housing, Removing And Installing 10.00 -->







1 - Lock cylinder carrier
2 - Guide piece
3 - Guide pin
4 - Handle
5 - Seal
6 - Lock cylinder housing
- Clipped into lock cylinder carrier.

7 - Motor to unlock rear lid V139
- Removing.
- Remove lock cylinder carrier - 1 -.
- Unbolt motor and remove.

8 - Bolt
9 - Carrier plate
- Bolted to lock cylinder carrier.

10 - Conductor housing
- Secured to carrier by circlip.

11 - Switch for rear lid release - E165 -
- Soldered to lock cylinder carrier.
