Rear Lid Trim, Removing and Installing

Rear Lid Trim, Removing And Installing --> 09.00

Removing







- Screw in locking mechanism - 2 -.
- Fold bracket - 1 - upward and remove warning triangle - 3 - - arrow -.







- Remove Phillips-head bolts - arrows -.
- Slide bracket - 1 - upward and remove.

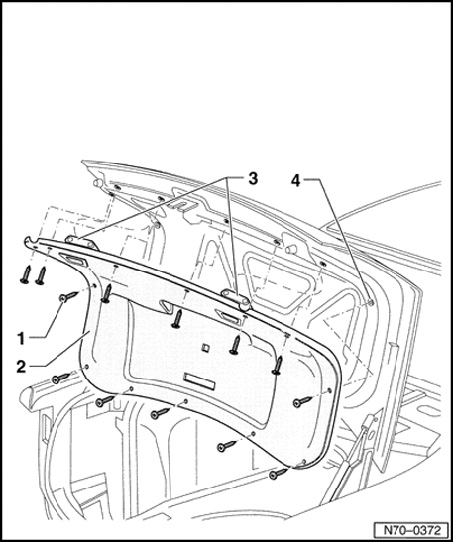

- Remove thirteen bolts - 1 -.
- Pull trim - 2 - together with grip shells - 3 - out of lid and remove.

Installing







- Check expanding nuts - 4 -, replace if necessary and insert into holes of lid.
- Place trim - 2 - in installation position and bolt firmly.
- Insert bracket for warning triangle and bolt firmly.
- Insert warning triangle into bracket.
- Fold bracket closed and bolt down locking mechanism.
