Rear Lock Carrier Cover, Removing and Installing (Wagon)

Rear Lock Carrier Cover, Removing And Installing (Wagon)

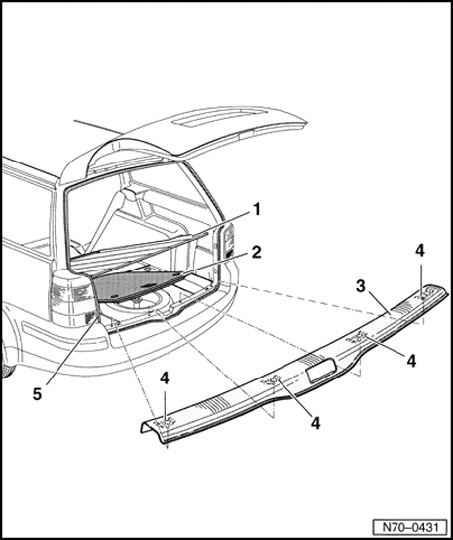

Removing







- Lift storage area floor trim - 1 -.
- Open spare wheel well cover - 2 -, pull upward and support.
- Unclip lock carrier cover - 3 -.

Installing







Installation is performed in the reverse order of removal.

NOTE:
- Before installing cover, check clips - 4 - and replace if necessary.
- After installing, make sure that seal - 5 - is properly seated again.
