Rear Lock Carrier Cover, Removing and Installing

Rear Lock Carrier Cover, Removing And Installing

Removing

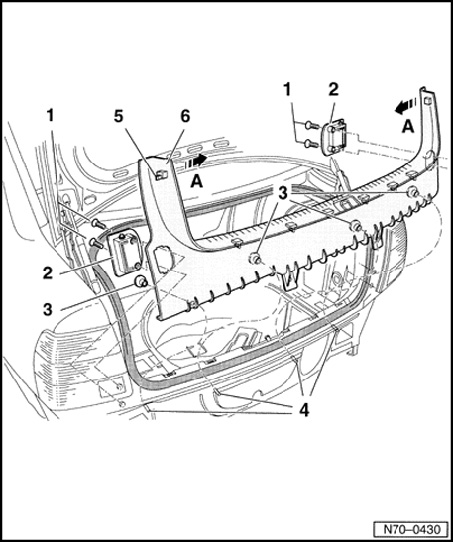

- Remove bolts - 1 -.
- Remove tie-downs - 2 -.
- Unscrew four plugs - 3 - from threaded pins - 4 - using screwdriver.
- Unclip upper edges of cover - 6 - arrows - A -.
- Unclip cover upward from lock carrier.

Installing







Installation is performed in the reverse order of removal.

NOTE: Check plugs - 3 - and clips - 5 - before installing, replace if necessary.
