Rear Lid Trim, Removing and Installing (Wagon)

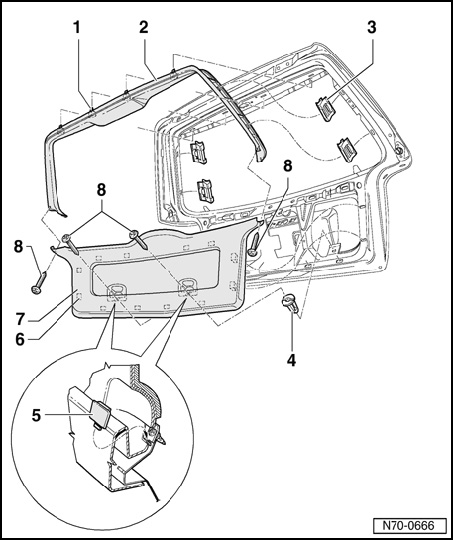

Rear Lid Trim, Removing And Installing (Wagon) 10.00 -->







1 - Clip
- 4x

2 - Upper trim
- Remove lower trim - 7 -.
- Unclip upper trim - 2 - first at sides out of clips - 3 -, then unclip at upper area.
- Before installing trim, check clips - 1 -, replace if necessary and insert into mounts of trim.

3 - Clip
- 4x
- Before installing upper trim, check for damage, replace if necessary.

4 - Expanding nut
- 2x

5 - Concealment cap
- 2x

6 - Clip
- 12x

7 - Lower trim
- Pry off caps - 5 -.
- Remove bolts - 8 -.
- Unclip lower trim - 7 -, starting at bottom.
- Before installing trim, check clips - 6 -, replace if necessary and insert into mounts of trim.

8 - Bolt
- 4x
