Rear Lid Trim, Removing and Installing

Rear Lid Trim, Removing And Installing 10.00 -->

Removing







- Screw in locking mechanism - 2 -.
- Fold bracket - 1 - upward and remove warning triangle - 3 -.







- Remove Phillips-head bolts - arrows -.
- Slide bracket - 1 - upward and remove.

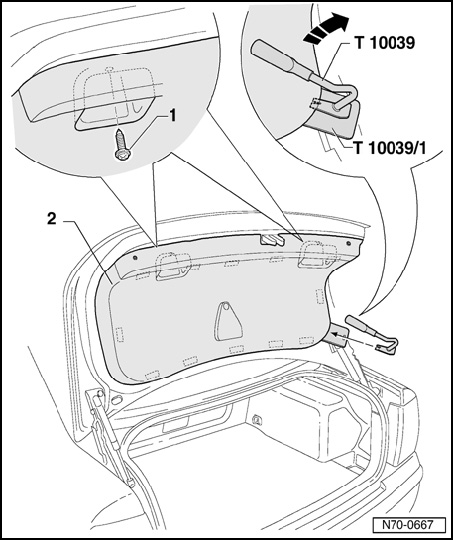

- Unscrew two bolts - 1 - from grip cavities.
- Position wedge T10039/1 in area of steel clips and unclip trim from rear lid using Release Lever T10039.

Installing







NOTE: Before installing, check and if necessary replace steel clips.

Installation of trim - 2 - is the reverse of removal.

- Insert bracket for warning triangle and bolt firmly.
- Insert warning triangle into bracket.
- Fold bracket closed and bolt down locking mechanism.
