Rear Lid Trim With Emergency Release Lever (Only Us Vehicles), Removing

Rear Lid Trim With Emergency Release Lever (only US Vehicles) 10.00, Removing And Installing

Removing

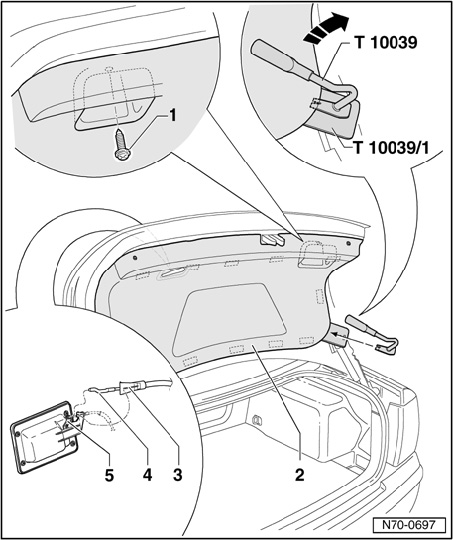

- Remove bolt - 1 - from grip cavity.
- Position wedge T10039/1 in area of steel clips and unclip trim - 2 - from rear lid using Release Lever T10039.
- Unhook clip - 3 - and unhook Bowden cable - 4 - from operating lever - 5 -.

Installing
- Installation is the reverse order of removal.

NOTE: Before installing, check and if necessary replace steel clips.
