Hood Weatherstrip: Service and Repair

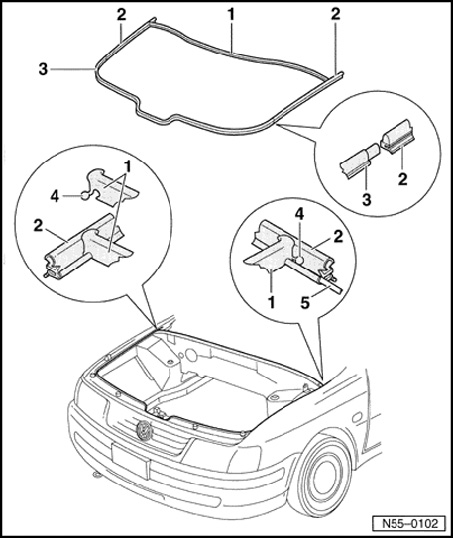

Hood Seal, Assembly Overview







1 - Plenum chamber seal
- Side contour of plenum chamber seal must contact fender seal.

2 - Fender seal
3 - Front end seal
- Joined with fender seal.

4 - Buffer plugs
- Seal open Bowden cable channel using plugs.

5 - Bowden cable
