Hood Latch: Service and Repair

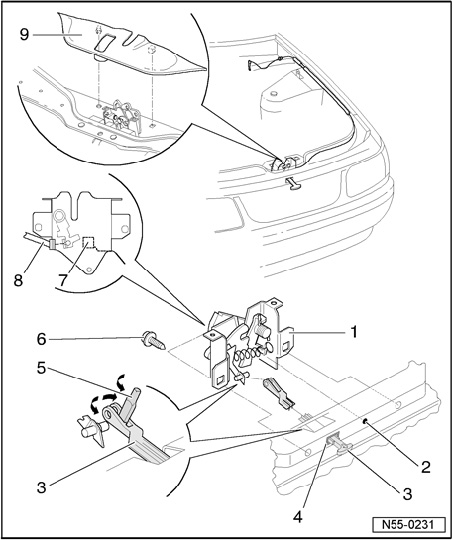

Hood Lock, Removing And Installing

Removing







- Using a screwdriver - 5 -, press apart clevis arms of release lever - 3 - and remove lever.
- Remove bolts - 6 -.
- Unhook Bowden cable - 8 -, disconnect harness connector for micro-switch (only vehicles with anti-ft warning system) - 7 -.

Installing
Installation is reverse order of removal.
