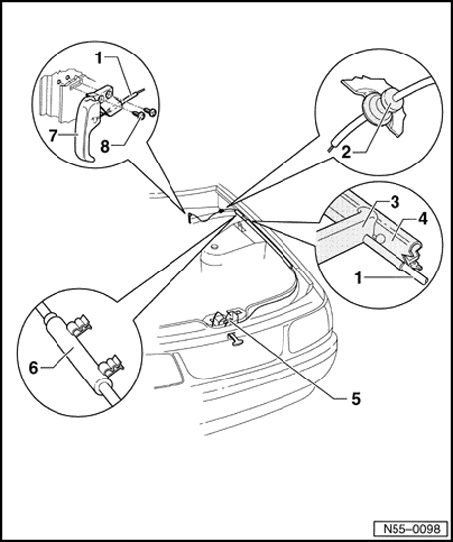

Bowden Cable For Hood Lock, Assembly Overview

Bowden Cable For Hood Lock, Assembly Overview







1 - Cable
- Replacing:
- Remove operating lever and latch, remove cable.
- Is split by Bowden cable coupling - 6 -
- Bowden cable can be disconnected at Bowden cable coupling for removing front end.

- Disconnecting Bowden cable.

2 - Sealing grommet
3 - Plenum chamber seal
- Bring side contour of plenum chamber seal into contact with fender seal

4 - Fender seal
5 - Hood lock
6 - Bowden cable coupling
7 - Release lever
- Cable engaged

8 - Self-tapping screw and washer assembly.
