Front Door Window Glass: Adjustments

Door Window, Adjusting

- Clamping brackets for door window must be in assembly holes.

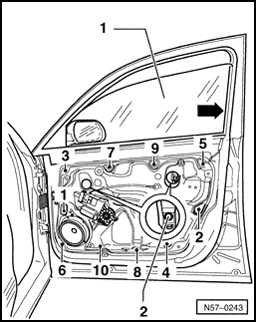

- Loosen clamping brackets, press door window - 1 - into window channel - arrow - and tighten clamping brackets with bolts - 2 -.







Tightening torque: Bolts - 2 - 9 Nm.
