Sedan

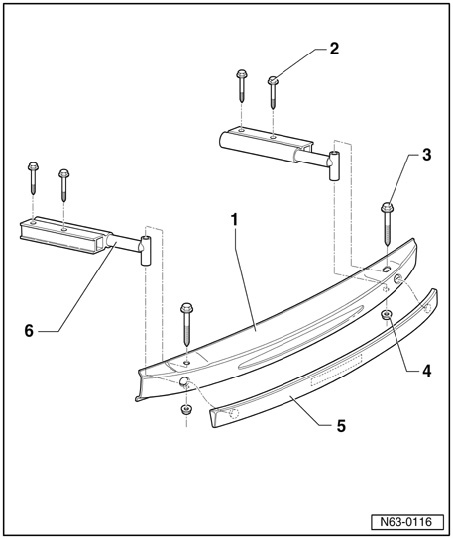

Bumper Carrier And Impact Absorber, Assembly Overview (4Motion, All US-vehicles) 10.00 -->







1 - Bumper carrier
2 - Bolt
- Qty 4
- 30 Nm + 1/2 (180°) additional turn.
- Always replace bolts after loosening.

3 - Bolt
- Qty 2

4 - Nut
- Qty 2
- 95 Nm

5 - Foam piece
- self adhering

6 - Impact absorber
- Left and right
