Wagon

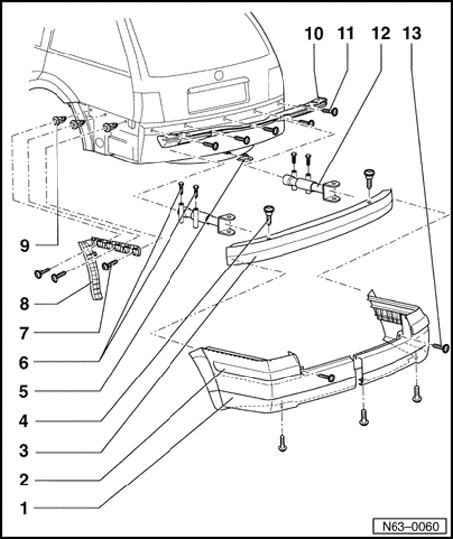

Rear Bumper Cover, Removing And Installing --> 09.00

Removing







- Release cover in area of wheel housing liner.
- Remove bolts - 13 -.
- Remove rear bumper cover - 1 - from guide pieces - 8 - (left and right sides) parallel, with a second technician.

Installing
Installation is reverse order of removal.
- Make sure gaps are parallel and gap dimensions.
