Sedan

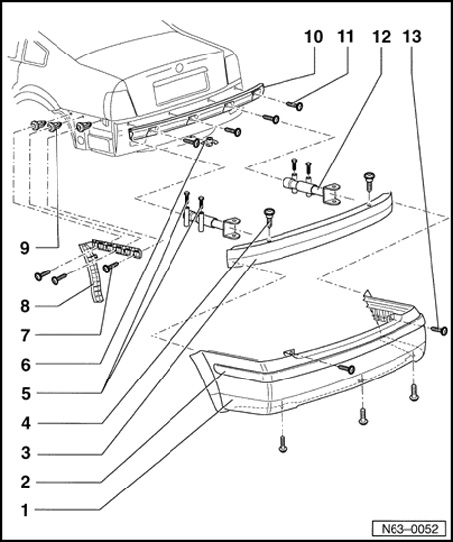

Rear Bumper Cover, Assembly Overview --> 09.00







1 - Cover
- Material - PP/EPDM

2 - Protective molding
- Clipped in cover.

3 - Bumper carrier
4 - Bolt
- Qty 2
- 15 Nm

5 - Bolt
- Qty 4
- 30 Nm + 1/2 (180°) additional turn.
- Always replace bolts after loosening.

6 - Speed nut
7 - Bolt
- Qty 6
- 2 Nm

8 - Guide piece
- To remove and install, pull out/slide in bumper parallel out of guide pieces (left and right sides).

9 - Expanding nut
- Qty 6

10 - Securing strip
11 - Bolt
- Qty 4
- 1.2 Nm

12 - Impact absorber
13 - Bolt
- Qty. 5
- 6 Nm
